Summary

MicroFit MFHLP31868 Replaces the Internormen 01E45040G30EP

MICROFIT MFHLP31868
MICROFIT MFHLP31868

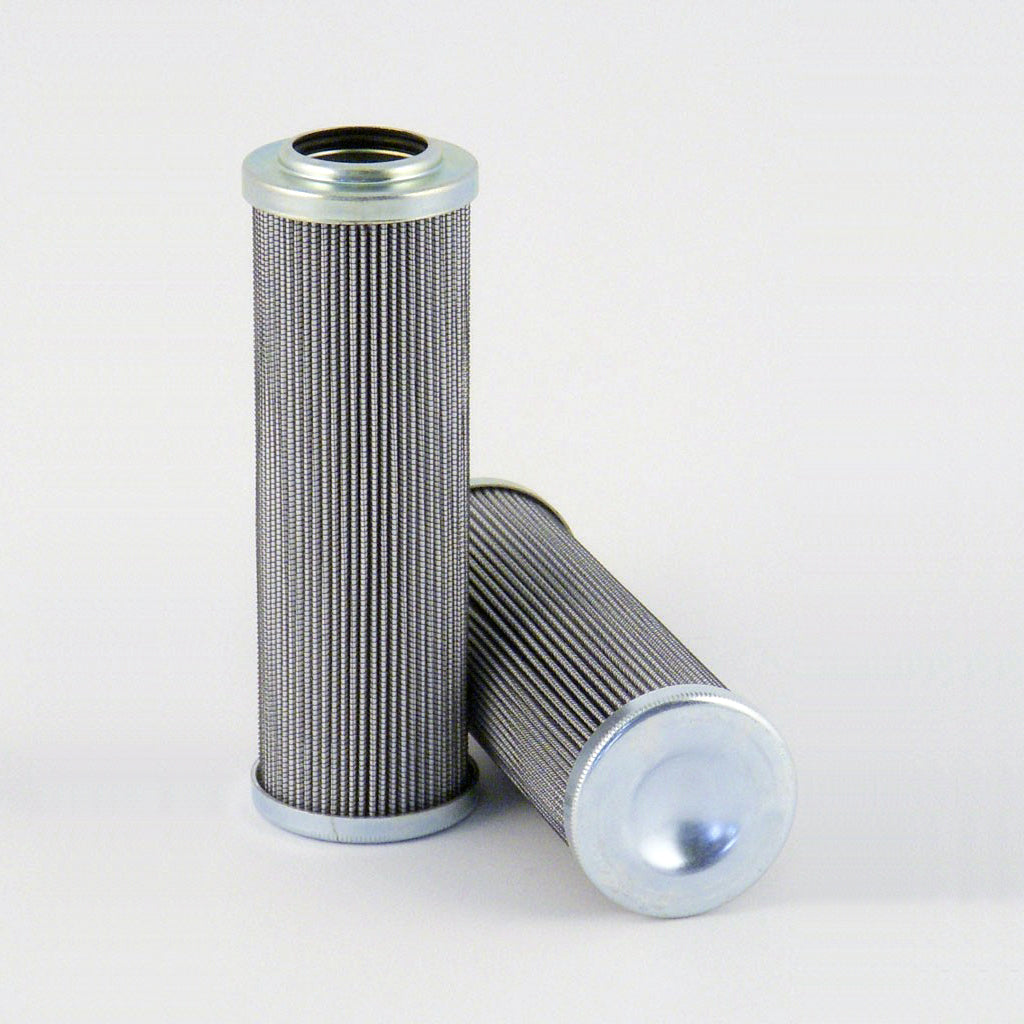

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31868 Pressure Filter | Replaces the Internormen 01E45040G30EP

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31868 is the MICROFIT® approved replacement to the Internormen 01E45040G30EP. Engineered and manufactured in Great Britain the MFHLP31868

Price Match
$ 3,701.00
2.29 kg
0.0015 m³
United Kingdom
8421.99.90
1.04 kg
0.0015 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31868 is the MICROFIT® approved replacement to the Internormen 01E45040G30EP. Engineered and manufactured in Great Britain the MFHLP31868

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 415.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 01E45040G30EP

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 415.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
