MicroFit MFHLP31447 Replaces the Hydac 0240 D 025 WHC

MICROFIT MFHLP31447
MICROFIT MFHLP31447
Representative product image Product image feedback

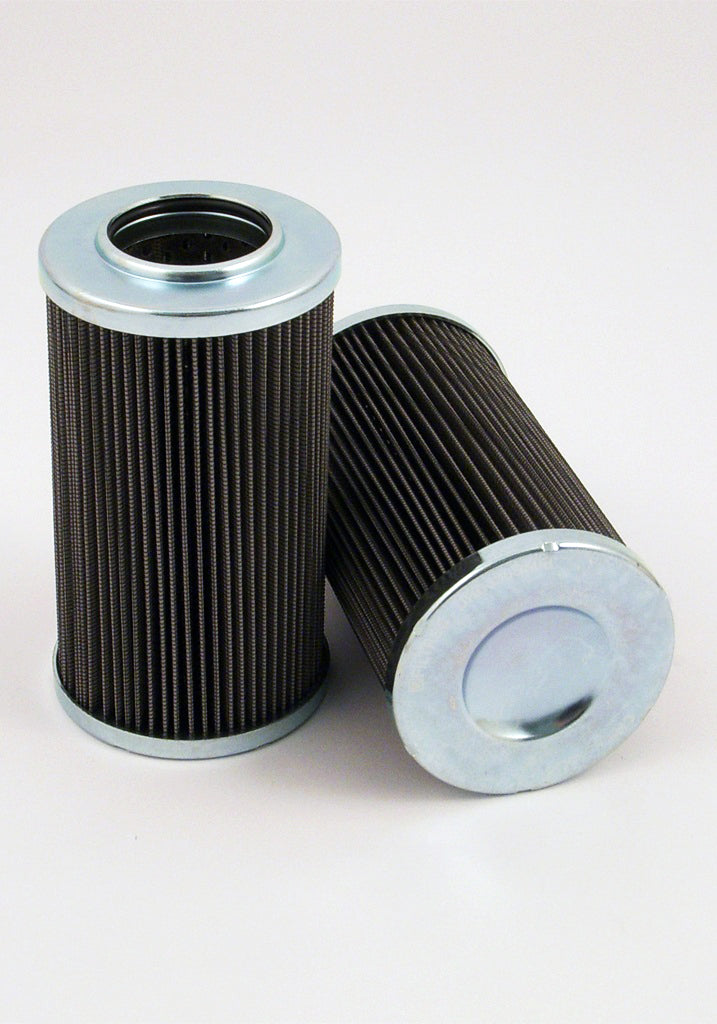

MicroFit® UltraGen III MFHLP31447 Pressure Filter | Replaces the Hydac 0240 D 025 WHC

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31447 is the MICROFIT® approved replacement to the Hydac 0240 D 025 WHC. Engineered and manufactured in Great Britain the MFHLP31447

Price Match
$ 3,006.00
1.17 kg
0.0008 m³
6 pcs
United Kingdom
8421.99.90
0.38 kg
0.0024 m³
6 pcs
United States
8421.29.80.90
0.53 kg
0.0008 m³
6 pcs
Italy
8421.99.90
0.46 kg
0.0013 m³
6 pcs
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31447 is the MICROFIT® approved replacement to the Hydac 0240 D 025 WHC. Engineered and manufactured in Great Britain the MFHLP31447

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 125µ
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 173.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 0240 D 025 WHC

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 173.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
