MicroFit MFHLP32335 Replaces the Eppensteiner 2.0020G40A000P

MICROFIT MFHLP32335
MICROFIT MFHLP32335

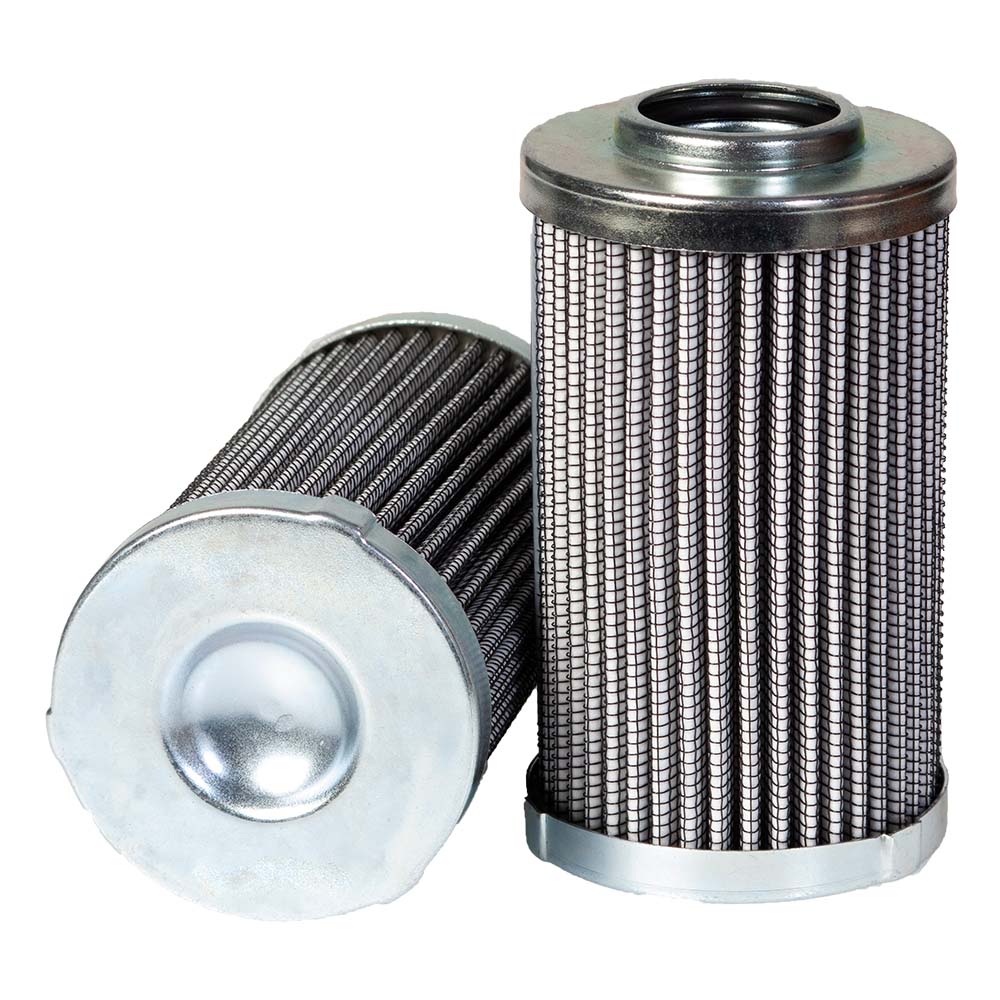

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32335 Pressure Filter | Replaces the Eppensteiner 2.0020G40A000P

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32335 is the MICROFIT® approved replacement to the Eppensteiner 2.0020G40A000P. Engineered and manufactured in Great Britain the MFHLP32335

Price Match
$ 2,380.00
1.34 kg
0.001 m³
United Kingdom
8421.99.90
0.61 kg
0.001 m³
Italy
8421.99.90
0.52 kg
0.0012 m³
France
8421.99.90
0.7 kg
0.0021 m³
Canada
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32335 is the MICROFIT® approved replacement to the Eppensteiner 2.0020G40A000P. Engineered and manufactured in Great Britain the MFHLP32335

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 157.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Eppensteiner Brand Logo

Same Fit-Form & Function

As the Genuine Eppensteiner 2.0020G40A000P

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 157.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
