MicroFit MFHC60193 Replaces the Filtration Group 70524254

MICROFIT MFHC60193
MICROFIT MFHC60193
Representative product image Product image feedback

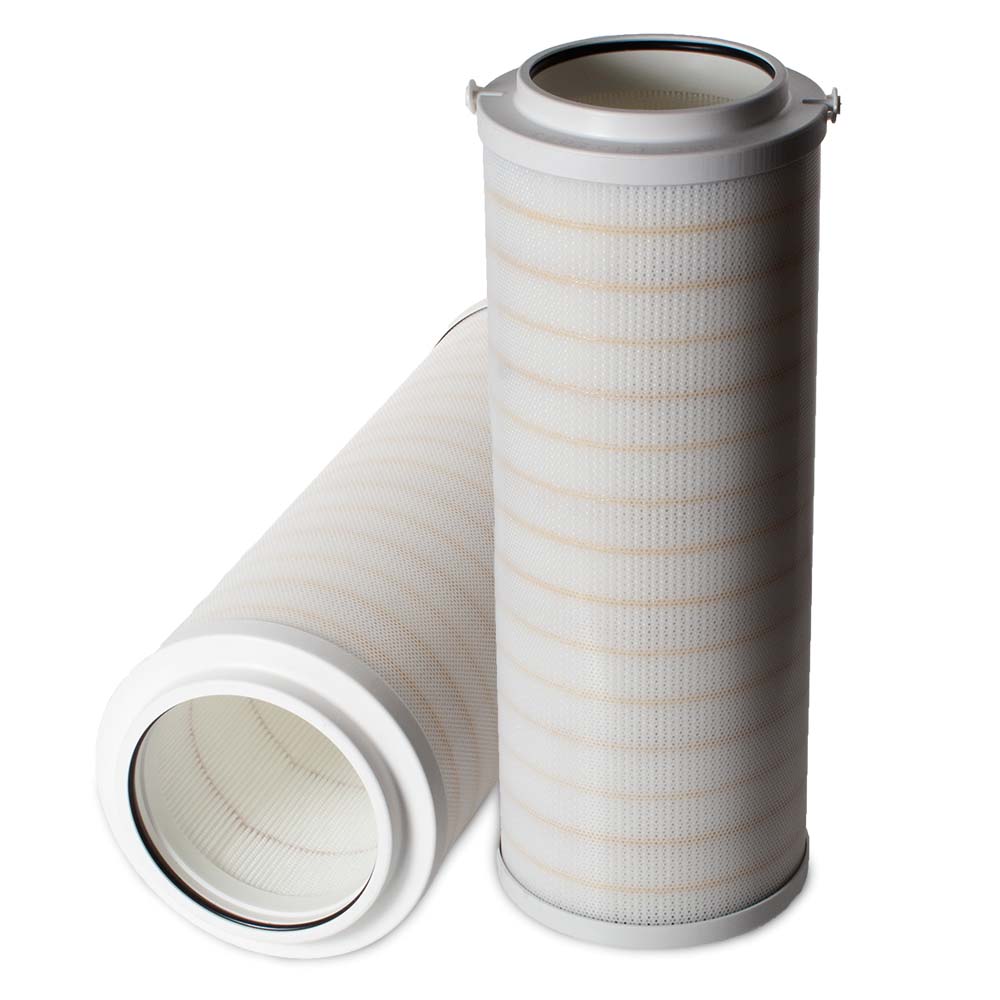

MicroFit® UltraGen III MFHC60193 Coreless Filter | Replaces the Filtration Group 70524254

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60193 is the MICROFIT® approved replacement to the Filtration Group 70524254. Engineered and manufactured in Great Britain the MFHC60193

Price Match
$ 6,132.00
3.2 kg
0.0097 m³
United Kingdom
8421.99.90
1.92 kg
0.0152 m³
France
8421.99.90
1.45 kg
0.0097 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60193 is the MICROFIT® approved replacement to the Filtration Group 70524254. Engineered and manufactured in Great Britain the MFHC60193

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 515.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Filtration Group Brand Logo

Same Fit-Form & Function

As the Genuine Filtration Group 70524254

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Coreless Filter
Outer Diameter 137.0 mm
Inner Diameter 99.5 mm
Length 515.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
