MicroFit MFHHP41206 Replaces the MP Filtri 8HP0503A03ASP01

MICROFIT MFHHP41206
MICROFIT MFHHP41206

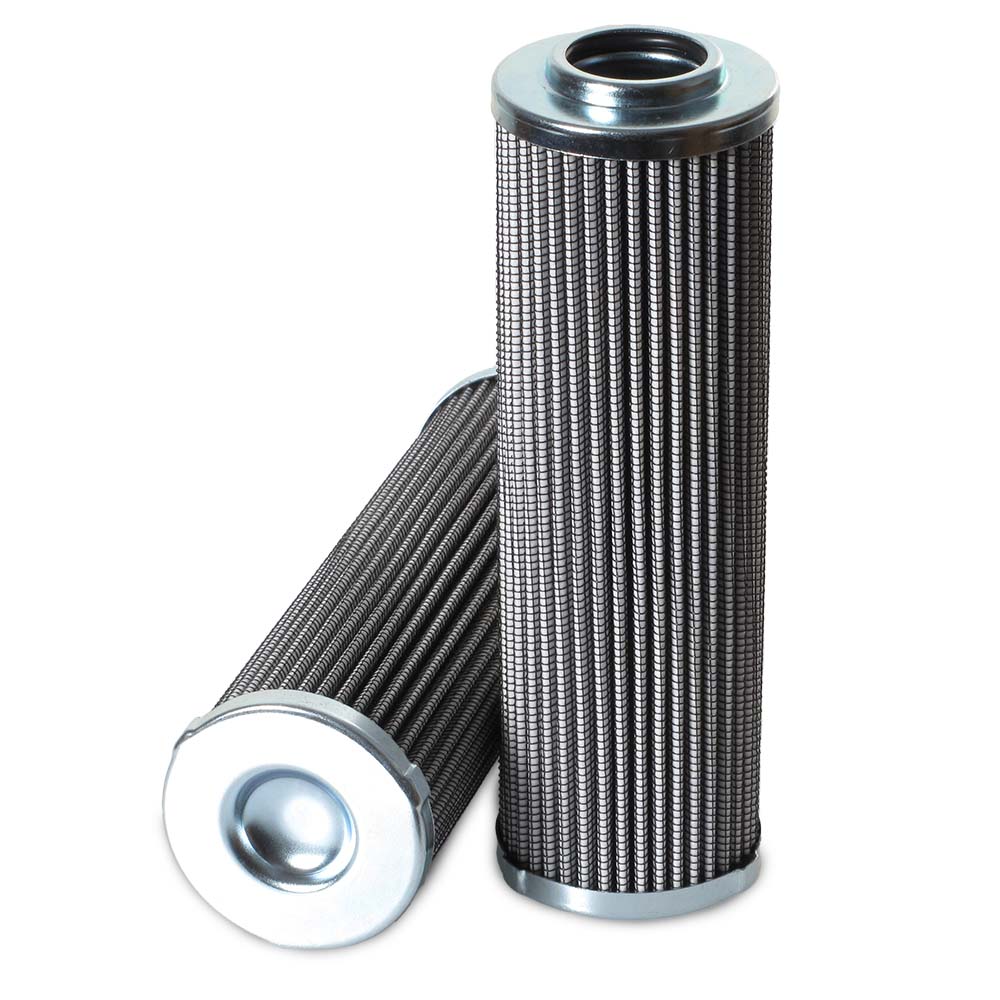

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP41206 Pressure Filter | Replaces the MP Filtri 8HP0503A03ASP01

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP41206 is the MICROFIT® approved replacement to the MP Filtri 8HP0503A03ASP01. Engineered and manufactured in Great Britain the MFHHP41206

Price Match
$ 3,267.00
0.89 kg
0.0004 m³
United Kingdom
8421.99.90
0.41 kg
0.0004 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP41206 is the MICROFIT® approved replacement to the MP Filtri 8HP0503A03ASP01. Engineered and manufactured in Great Britain the MFHHP41206

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 157.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri 8HP0503A03ASP01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 157.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
