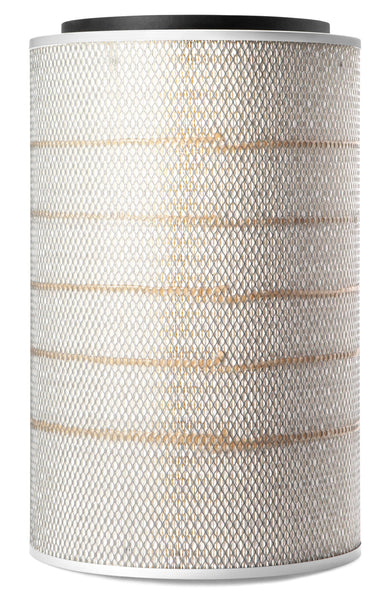

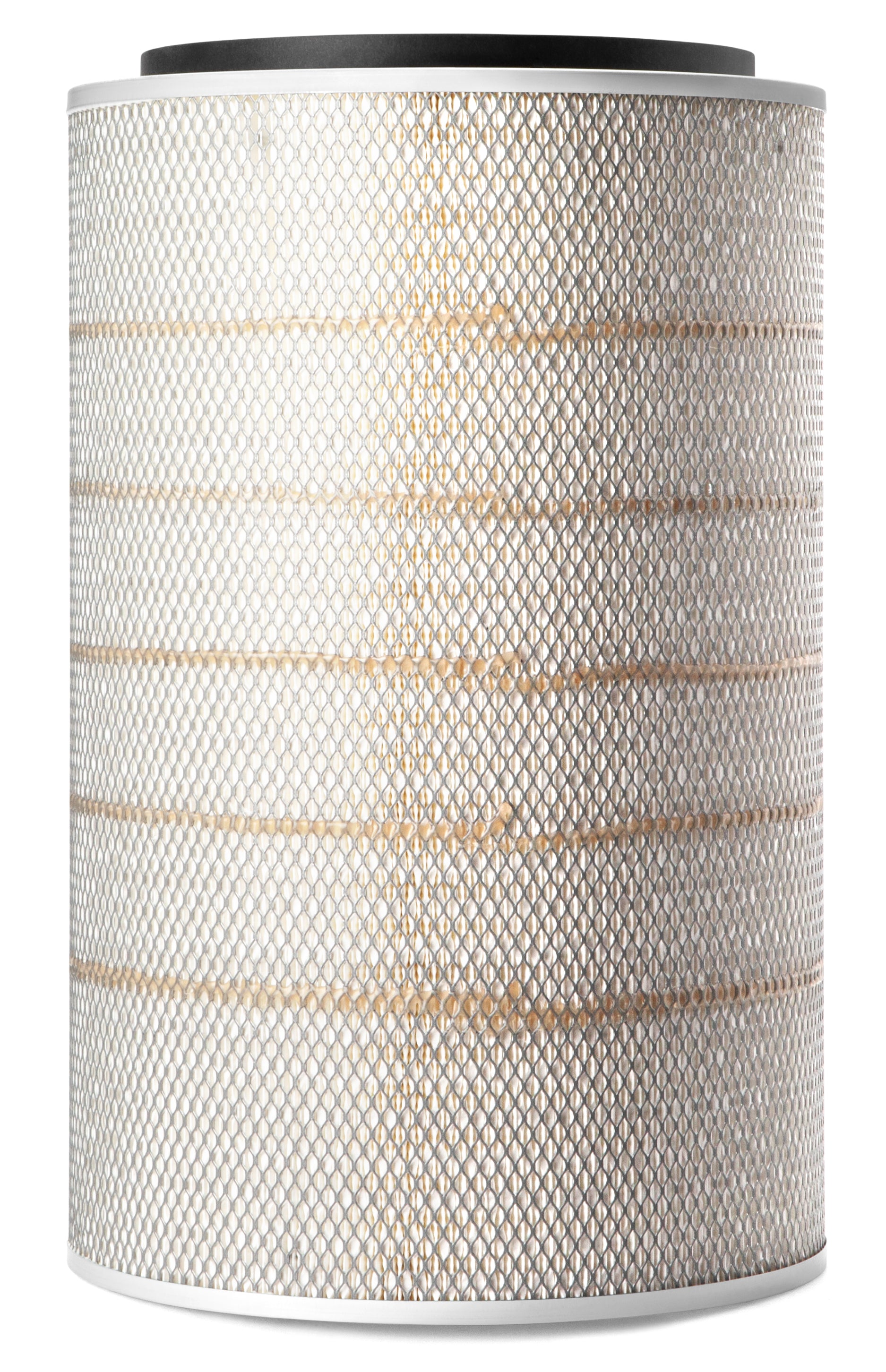

Fleetguard AF25235 Replacement Air

Fleetguard AF25235
Fleetguard AF25235
Representative product image Product image feedback

Fleetguard AF25235 Air

Brand: Fleetguard
Description

​Fleetguard® AF25235 axial seal primary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

Price Match
$ 2,368.00
4.51 kg
0.0808 m³
27 pcs
France
8421.31.00
4.92 kg
0.0739 m³
27 pcs
France
8421.99.90
4.1 kg
0.0924 m³
27 pcs
United Kingdom
8421.31.00.90
27 pcs
Germany
8421.99.90
Shipping Terms

Description

​Fleetguard® AF25235 axial seal primary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

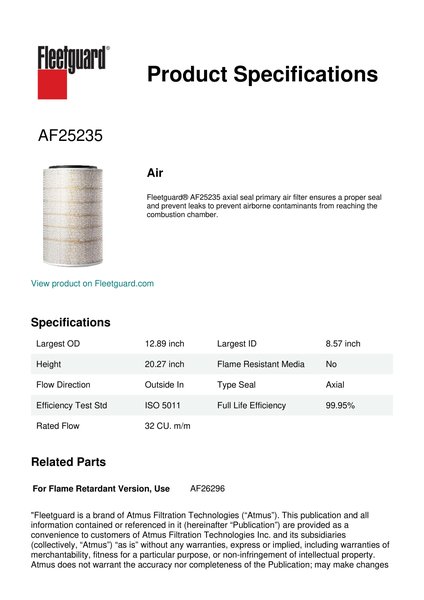

Specification

StyleAir
MediaNon-Flame Resistant
Outer Diameter 327.3 mm
Inner Diameter 217.7 mm
Length 514.9 mm
Seal MaterialAxial
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard AF25235

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Air
Outer Diameter 327.3 mm
Inner Diameter 217.7 mm
Length 514.9 mm
Media Type Non-Flame Resistant
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Axial
Temperature Range
