MicroFit MFHLP30426 Replaces the Sofima CCH3203MS1

MICROFIT MFHLP30426
MICROFIT MFHLP30426

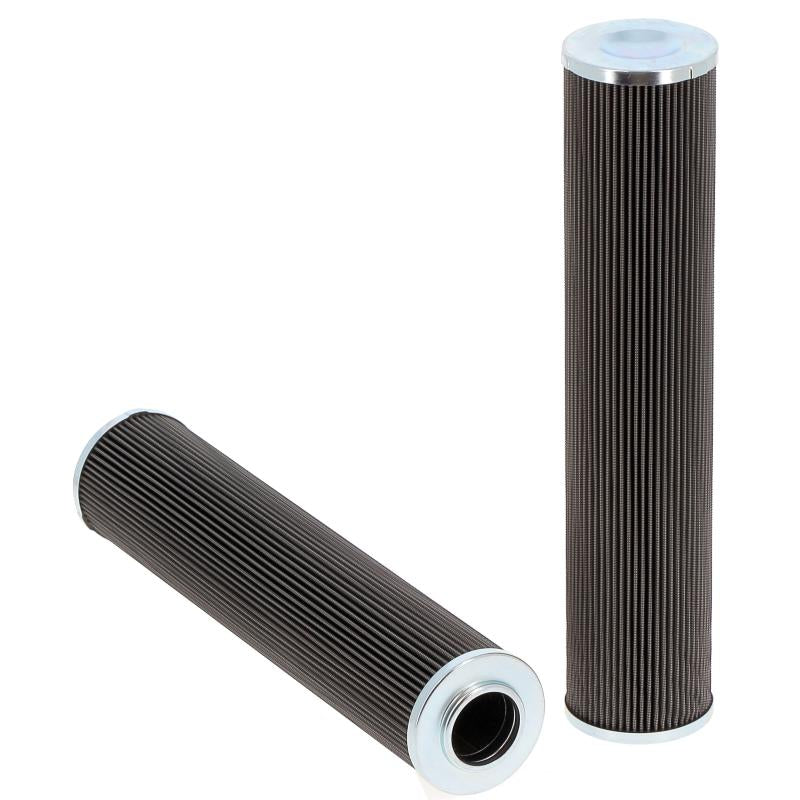

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP30426 Pressure Filter | Replaces the Sofima CCH3203MS1

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30426 is the MICROFIT® approved replacement to the Sofima CCH3203MS1. Engineered and manufactured in Great Britain the MFHLP30426

Price Match
$ 3,951.00
2.43 kg
0.0023 m³
252 pcs
United Kingdom
8421.99.90
1.17 kg
0.003 m³
252 pcs
Italy
8421.29.80.90
1.11 kg
0.0023 m³
252 pcs
Italy
8421.99.90
1.14 kg
0.003 m³
252 pcs
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30426 is the MICROFIT® approved replacement to the Sofima CCH3203MS1. Engineered and manufactured in Great Britain the MFHLP30426

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 375.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Sofima Brand Logo

Same Fit-Form & Function

As the Genuine Sofima CCH3203MS1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 375.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
