Fleetguard HF7317 Replaces the Schroeder CCS3

CCS3
CCS3
Representative product image Product image feedback

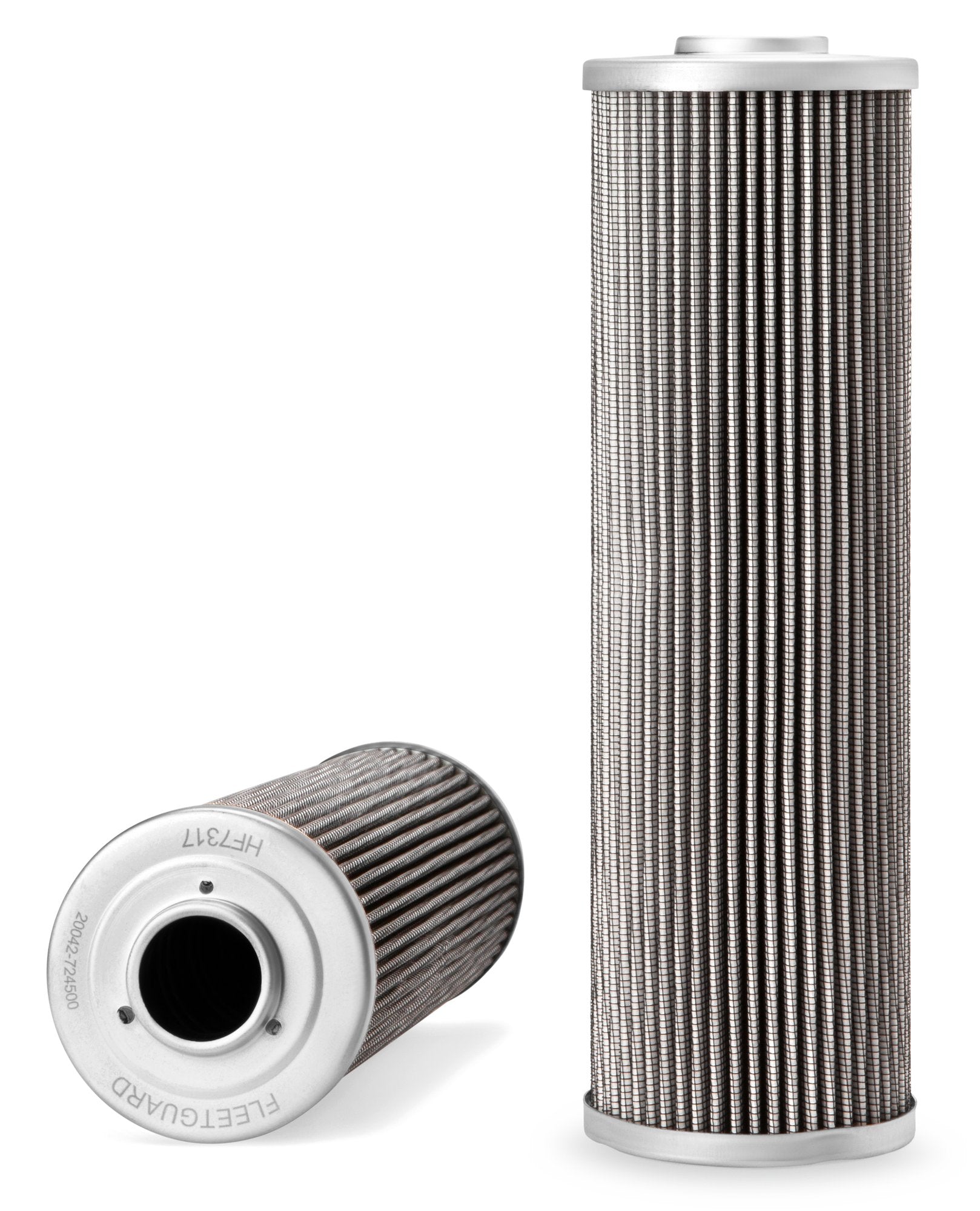

Fleetguard HF7317 Hydraulic Filters | Replaces the Schroeder CCS3

Brand: Fleetguard
Description

Fleetguard® HF7317 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$ 1,606.00
0.52 kg
0.0022 m³
12 pcs
624 pcs
United States
8421.23.00
0.41 kg
0.002 m³
624 pcs
United States
8421.29.80.90
0.4 kg
0.002 m³
624 pcs
France
8421.99.90
0.61 kg
0.0013 m³
624 pcs
Italy
8421.99.90
0.61 kg
624 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Fleetguard® HF7317 hydraulic cartridge filter is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 73.0 mm
Inner Diameter 27.3 mm
Length 241.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder CCS3

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Special Filter
Outer Diameter 73.0 mm
Inner Diameter 27.3 mm
Length 241.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
