MicroFit MFHLP33186 Replaces the Fai Filtri CF3200M60NA

MICROFIT MFHLP33186
MICROFIT MFHLP33186
Representative product image Product image feedback

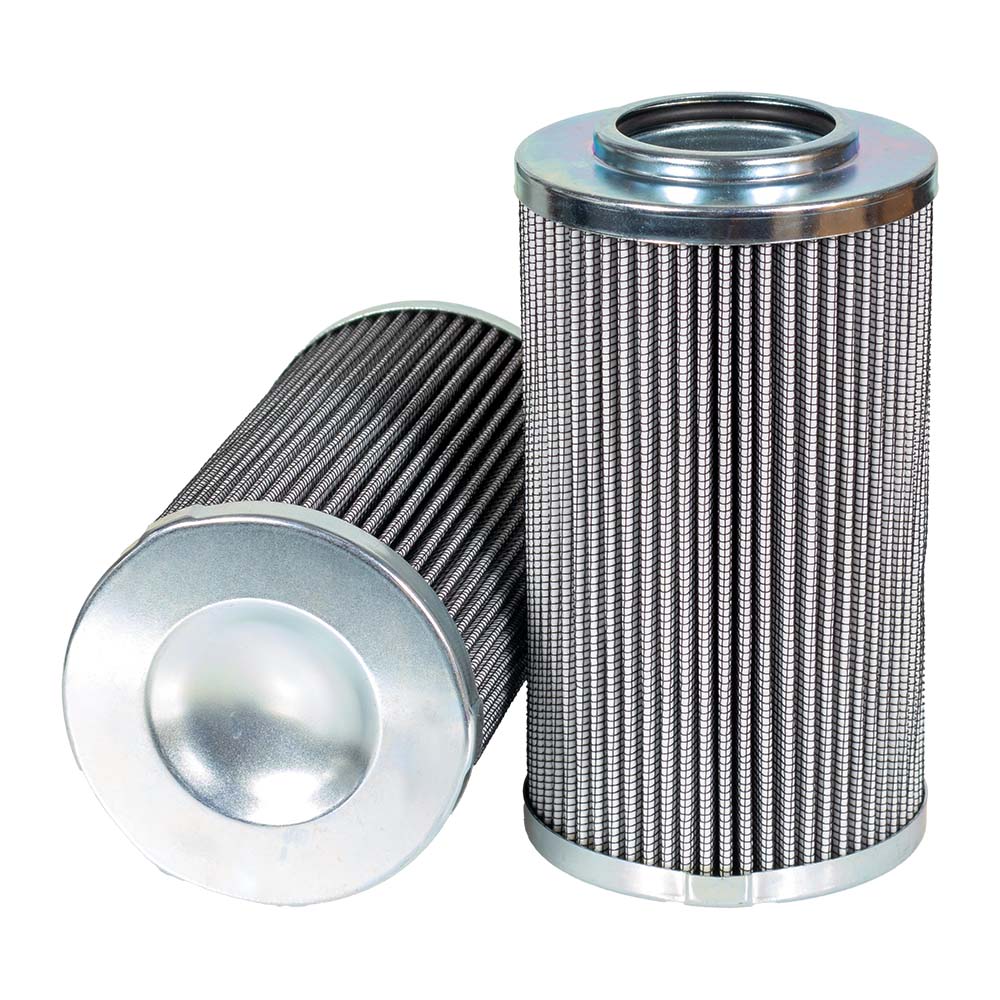

MicroFit® UltraGen III MFHLP33186 Pressure Filter | Replaces the Fai Filtri CF3200M60NA

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP33186 is the MICROFIT® approved replacement to the Fai Filtri CF3200M60NA. Engineered and manufactured in Great Britain the MFHLP33186

Price Match
$ 2,246.00
1.31 kg
0.0009 m³
United Kingdom
8421.99.90
0.27 kg
0.0009 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP33186 is the MICROFIT® approved replacement to the Fai Filtri CF3200M60NA. Engineered and manufactured in Great Britain the MFHLP33186

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 140.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Fai Filtri CF3200M60NA

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 140.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
