Summary

MP Filtri MF0301P25NB Replaces the MP Filtri F3P20NA

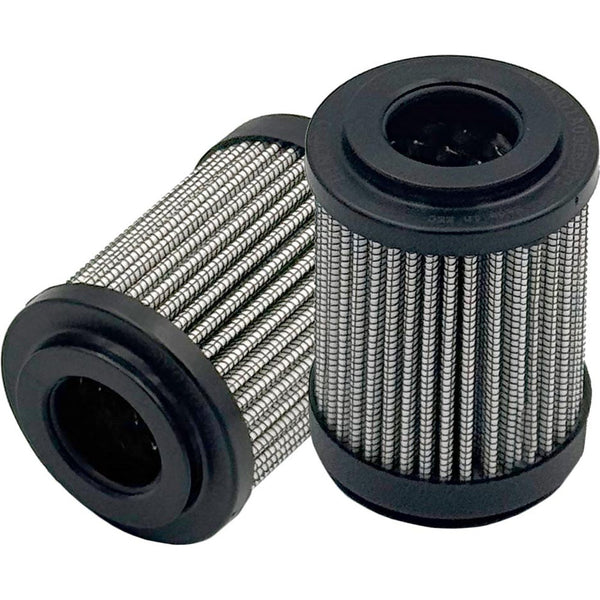

F3P20NA
F3P20NA
ZEZIONE FILTRO4

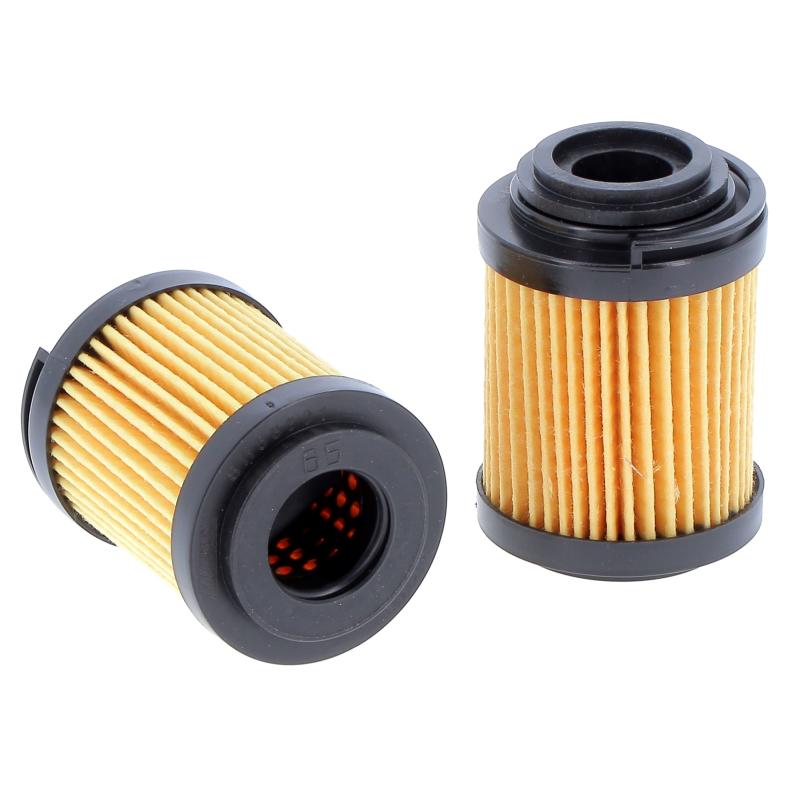

Representative product image Product image feedback

MP Filtri MF0301P25NB | Replaces the MP Filtri F3P20NA

Brand: MP Filtri
Description

Original MP Filtri MF0301P25NB replacement filter.

MP Filtri evaluates each new product design through accurate laboratory tests which combine both technology & efficiency ensuring innovation is a priority of the design process. MP Filtri supplies a wide range of products for all hydraulic & lubrication mobile & industrial applications using filters, elements & accessories as well as bell housing and drive couplings for power transmission systems. As a total solution provider, MP Filtri completes the range with contamination monitoring products and mobile filtration units suitable for various fluid applications

Price Match
$ 391.00
2080 pcs
Italy
8421.99.90
0.13 kg
0.0004 m³
2080 pcs
Italy
8421.29.80.90
0.11 kg
0.0002 m³
2080 pcs
Italy
8421.99.90
0.09 kg
0.0003 m³
2080 pcs
France
8421.99.90
Shipping Terms

Description

Original MP Filtri MF0301P25NB replacement filter.

MP Filtri evaluates each new product design through accurate laboratory tests which combine both technology & efficiency ensuring innovation is a priority of the design process. MP Filtri supplies a wide range of products for all hydraulic & lubrication mobile & industrial applications using filters, elements & accessories as well as bell housing and drive couplings for power transmission systems. As a total solution provider, MP Filtri completes the range with contamination monitoring products and mobile filtration units suitable for various fluid applications

Specification

StyleReturn Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 75.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
MP Filtri Brand Logo

MP Filtri Product

Genuine MP Filtri MF0301P25NB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 52.0 mm
Inner Diameter 24.5 mm
Length 75.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
