Mann Filter H 199 Replacement Hydraulic Transmission Filter

H 199
H 199
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

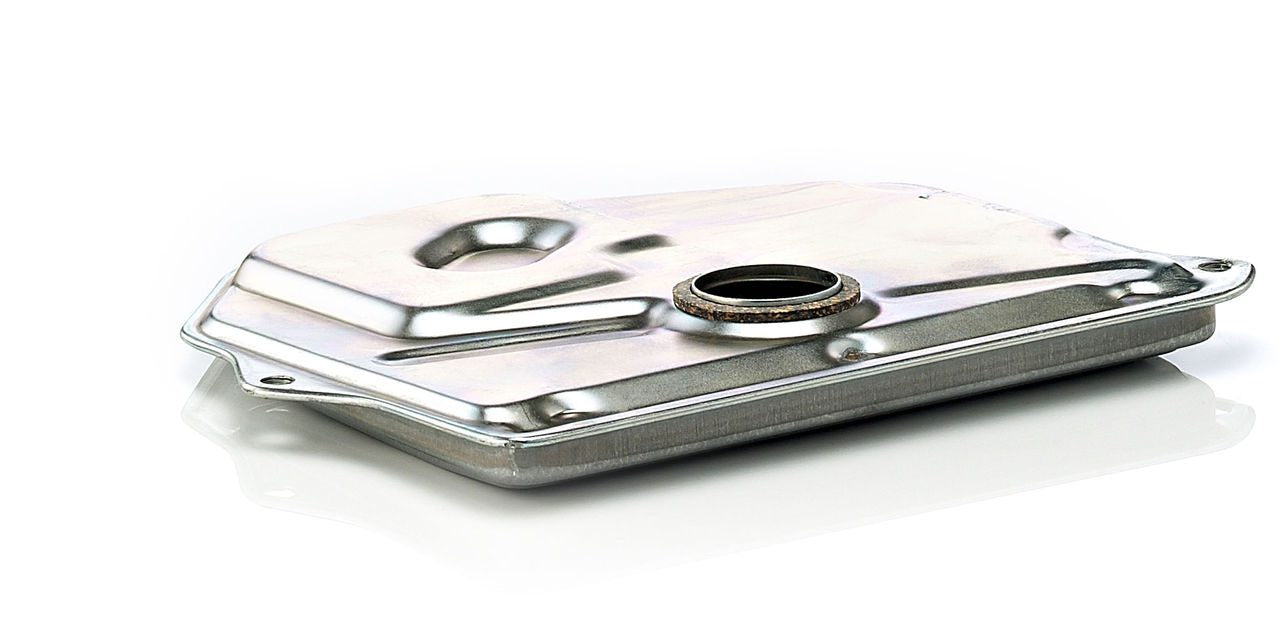

Mann Filter H 199 Hydraulic Transmission Filter

Brand: Mann Filter
Description

MANN-FILTER transmission oil filters ensure the purest oil and thus protect delicate transmissions against wear caused by impurities. The practical kit also includes the appropriate seal for the transmission oil pan, which should always be replaced during service.

Price Match
$ 1,524.00
Bosnia & Herzegovina
8421.99.90
Shipping Terms

Description

MANN-FILTER transmission oil filters ensure the purest oil and thus protect delicate transmissions against wear caused by impurities. The practical kit also includes the appropriate seal for the transmission oil pan, which should always be replaced during service.

Specification

StyleHydraulic Transmission Filter

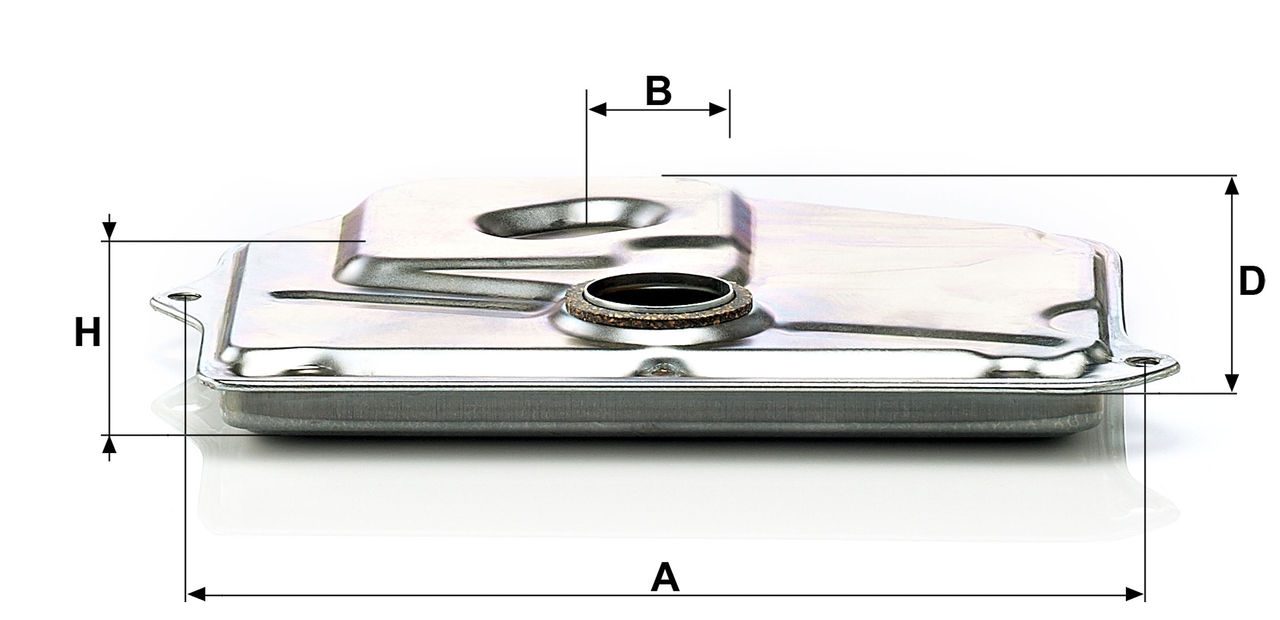

Dimension A 167.0 mm
Dimension B 26.0 mm
Dimension D 136.0 mm
Dimension H 18.5 mm
Bypass Pressure 0.2 bar
Mann Filter Brand Logo

Mann Filter Product

Genuine Mann Filter H 199

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Hydraulic Transmission Filter
Outer Diameter
Inner Diameter
Length
Media Type
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
