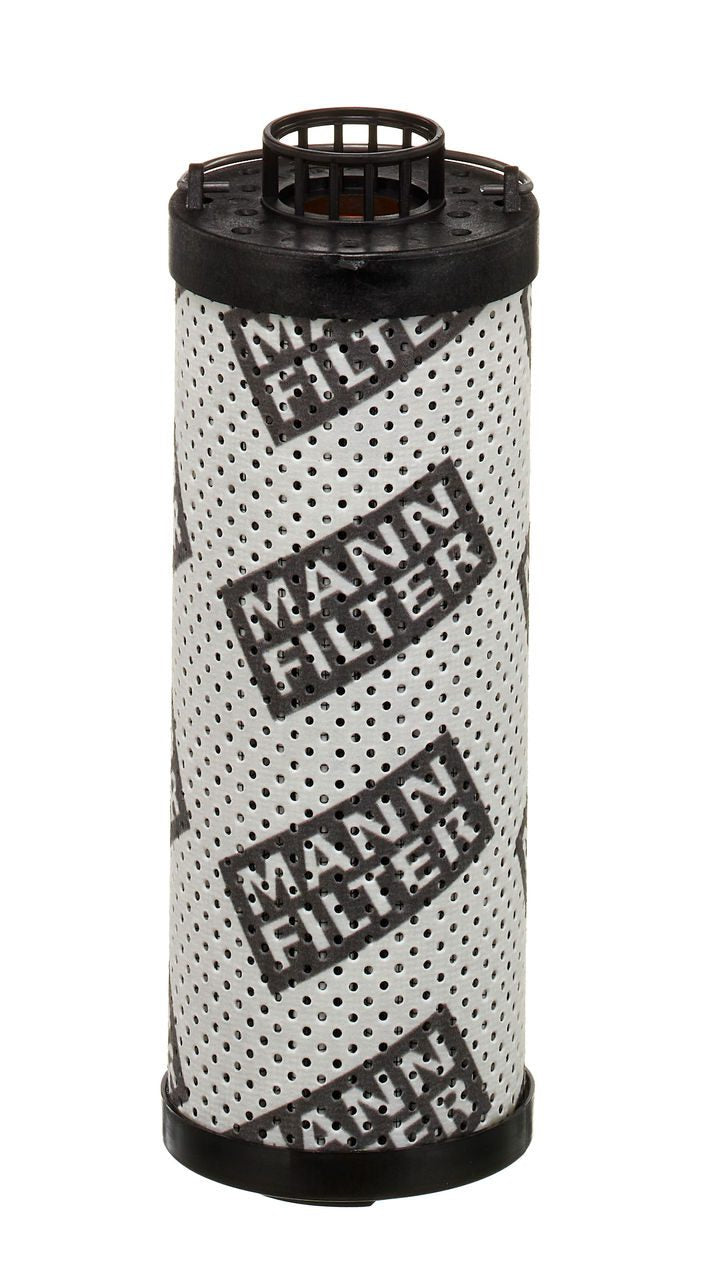

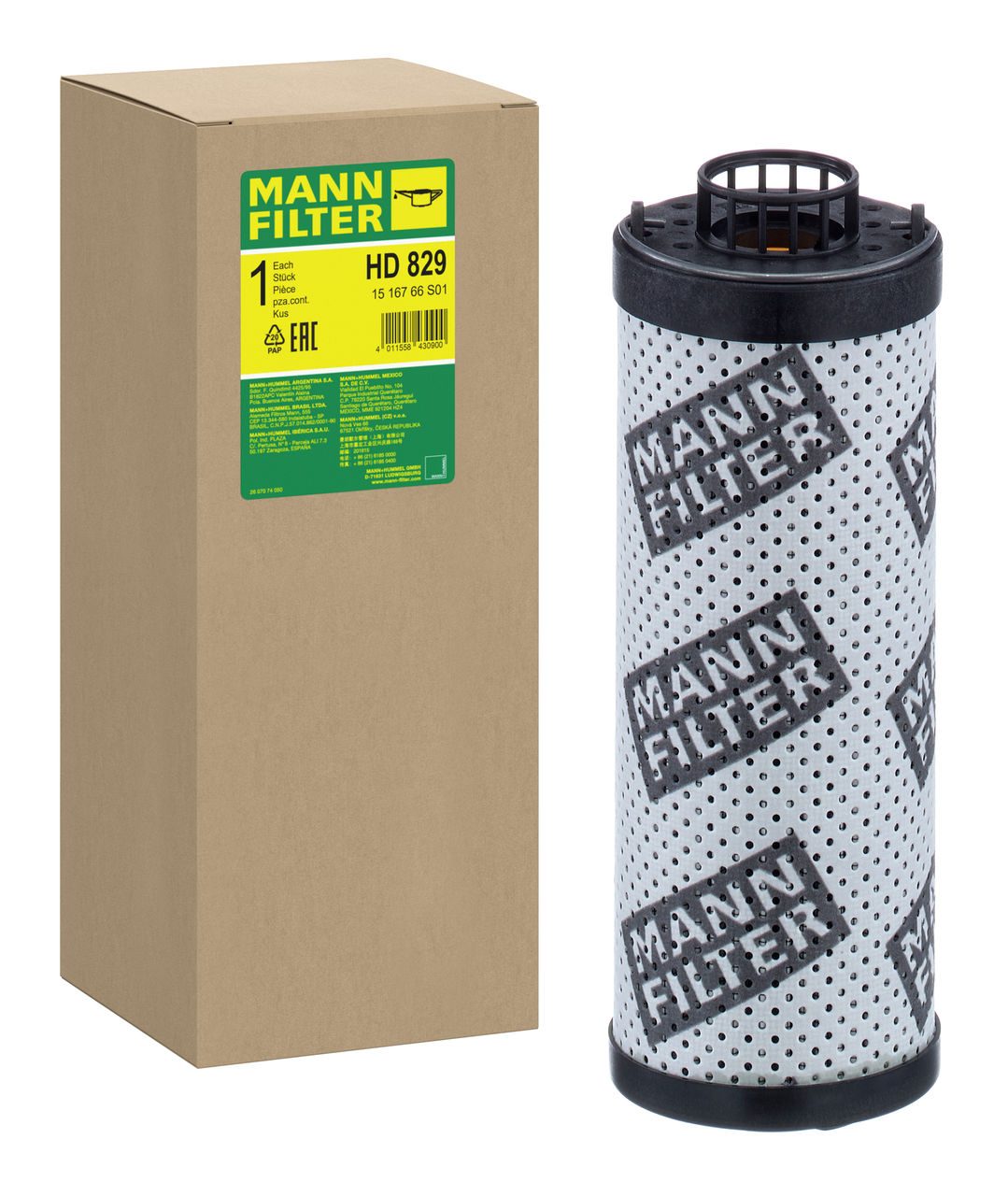

Mann HD829 Replacement | FilterFinder FF201266B

Specification
Efficiency 1 The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β. E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.	10µ @ β200
Efficiency 2	12µ @ β1000
Style	Return Filter

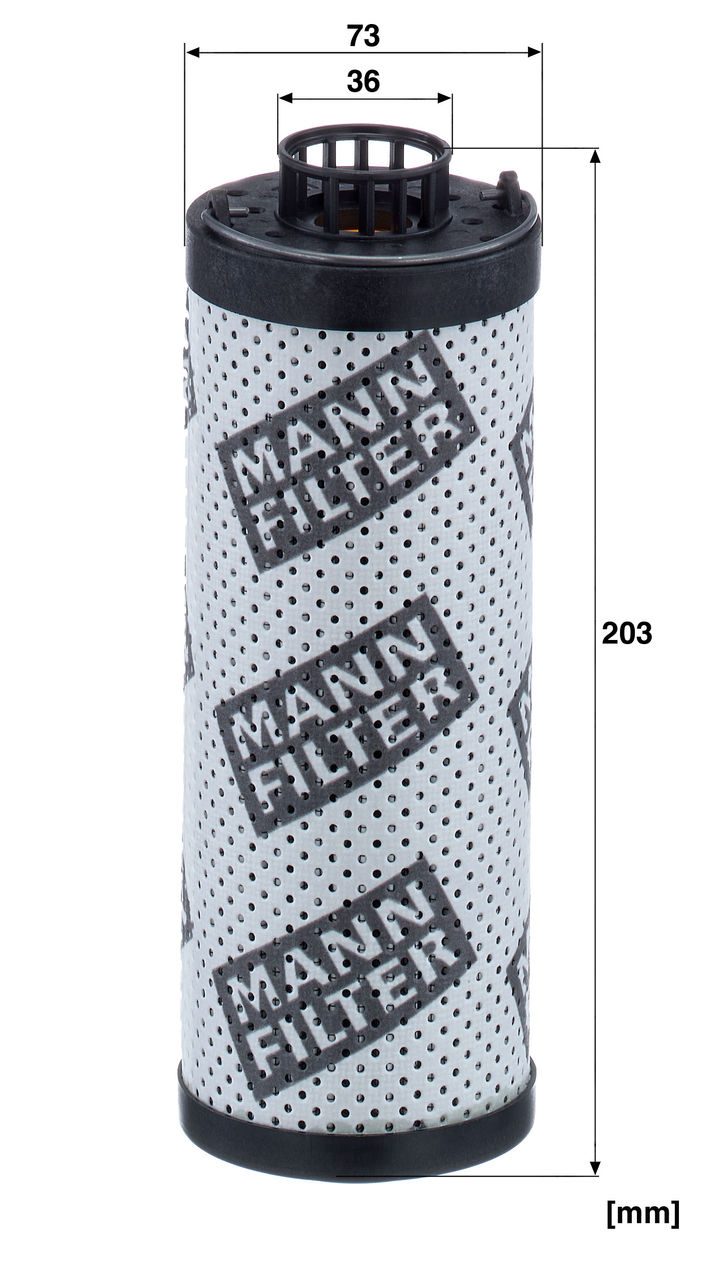

Outer Diameter	73.5 mm
Inner Diameter	34.5 mm
Length	203.0 mm
Media Type	Glass Fiber
Flow Direction	OUT-IN
Thread
Bypass Pressure Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.	3.0 BAR
Collapse Pressure	20 BAR
Seal	Nitrile
Temperature Range	-30 - +100°C
