Default Title FF300398C Replaces the Hi-Line HE72-4

HE72-4
HE72-4
Representative product image Product image feedback

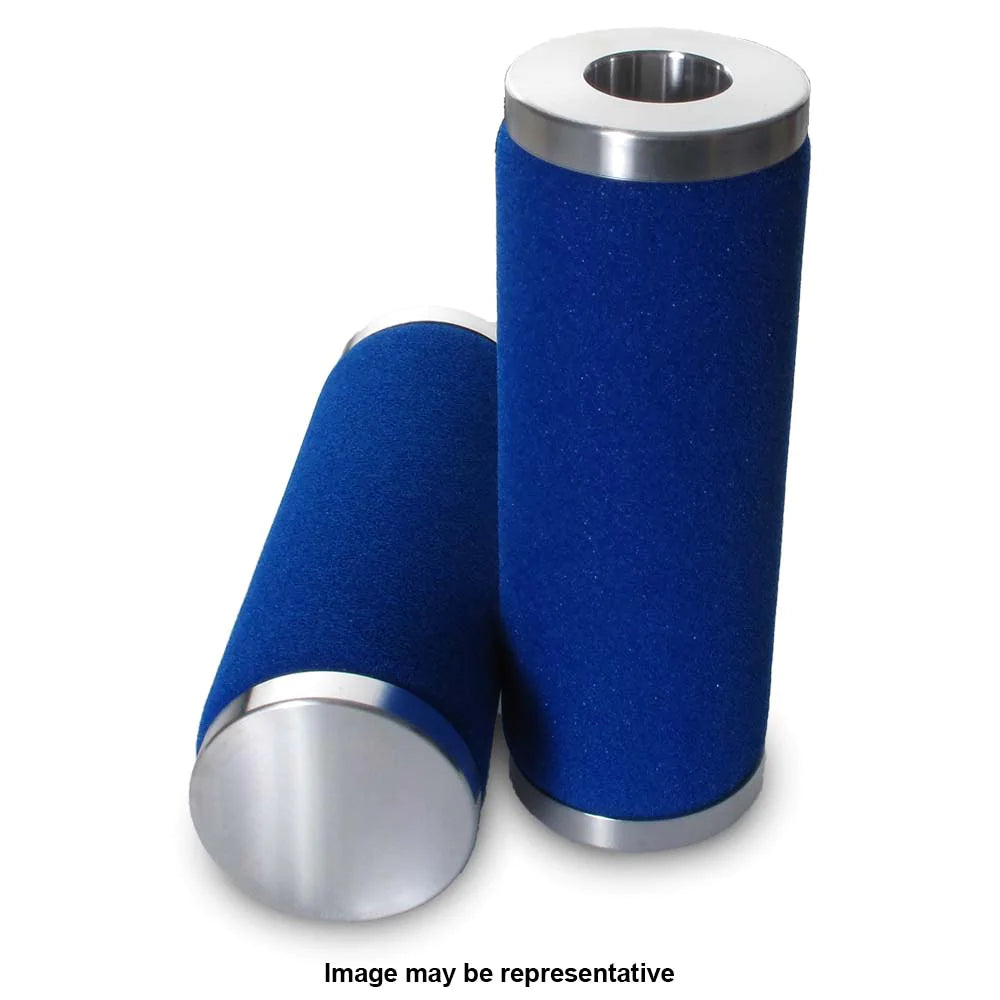

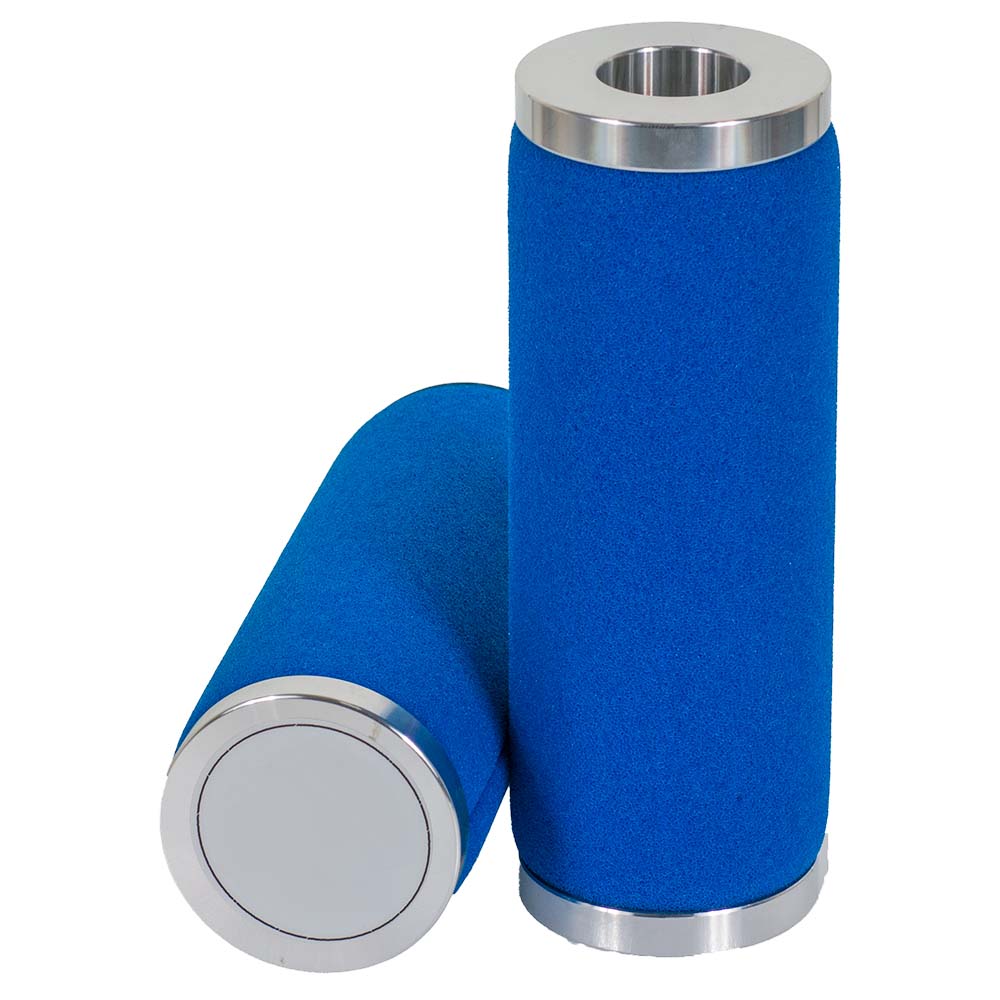

FilterFinder FF300398C Compressed Air Filter | Replaces the Hi-Line HE72-4

Brand: Default Title
Description

Price Match
$ 1,770.00
Shipping Terms

Description

Specification

StyleCompressed Air Filter
MediaPolyester Needle Felt
Outer Diameter 50.0 mm
Inner Diameter 24.0 mm
Length 144.0 mm
Seal MaterialNitrile
Temperature Range +1 - +80°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hi-Line HE72-4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Compressed Air Filter
Outer Diameter 50.0 mm
Inner Diameter 24.0 mm
Length 144.0 mm
Media Type Polyester Needle Felt
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range +1 - +80°C
