Fleetguard HF29105 Replacement Special Filter

Fleetguard HF29105
Fleetguard HF29105
Representative product image Product image feedback

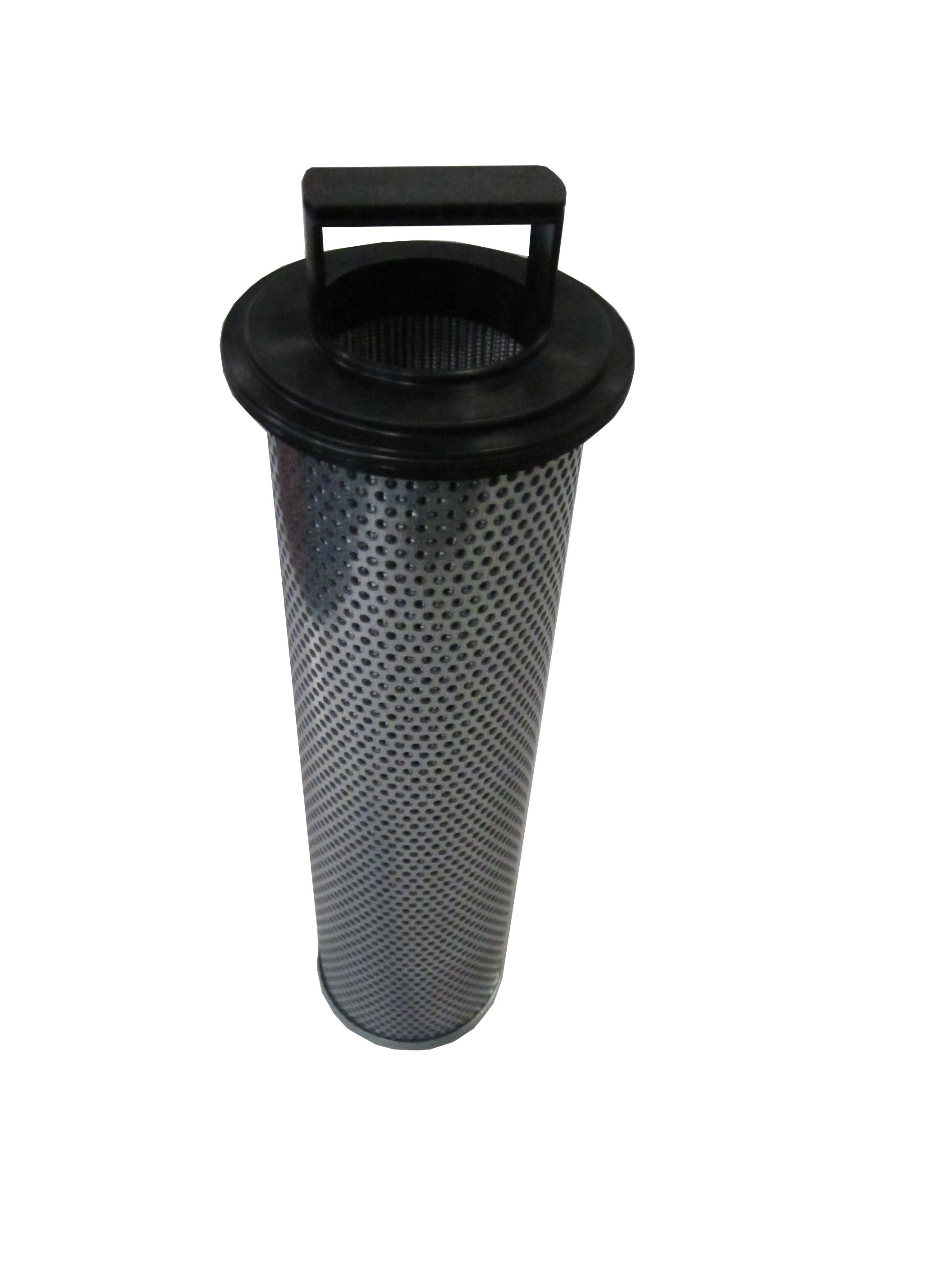

Fleetguard HF29105 Special Filter

Brand: Fleetguard
Description

Fleetguard® HF29105 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$ 1,637.00
1.03 kg
0.0057 m³
54 pcs
United States
8421.99.90
0.98 kg
0.0068 m³
54 pcs
France
8421.99.90
0.98 kg
0.0073 m³
54 pcs
Italy
8421.29.80.90
54 pcs
Germany
8421.99.90
1.13 kg
0.0043 m³
54 pcs
Italy
8421.99.90
1.13 kg
54 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Fleetguard® HF29105 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

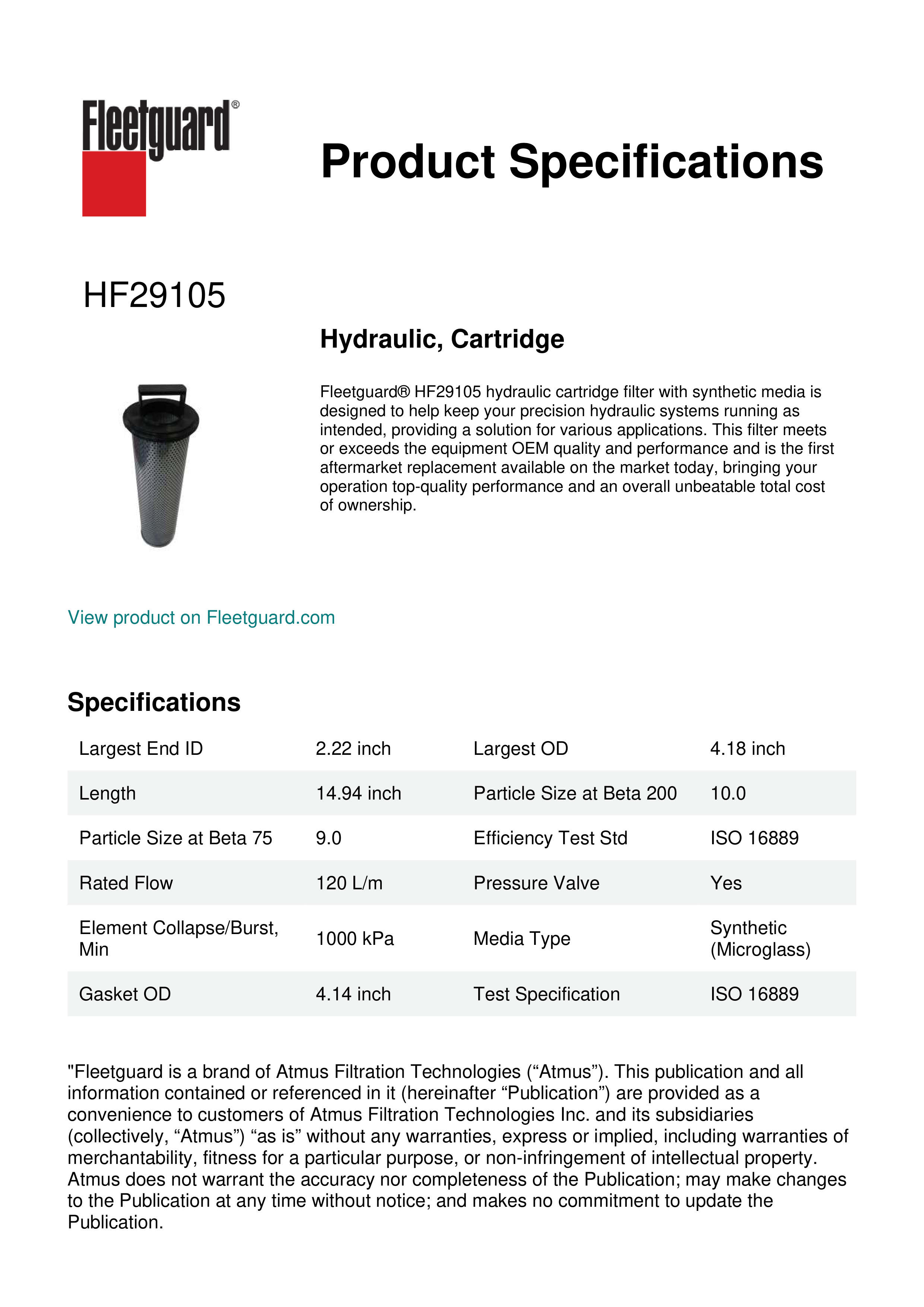

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 115µ @ β200
Efficiency 217µ @ β1000
Outer Diameter 105.8 mm
Inner Diameter 90.0 mm
Length 380.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF29105

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
15µ @ β200
Efficiency 2 17µ @ β1000
Style Special Filter
Outer Diameter 105.8 mm
Inner Diameter 90.0 mm
Length 380.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
