Summary

Donaldson P171863 Replaces the Ikron HF41010060ASMI060GCA01

Donaldson P171863
Donaldson P171863
Watch video
▶
Representative product image Product image feedback

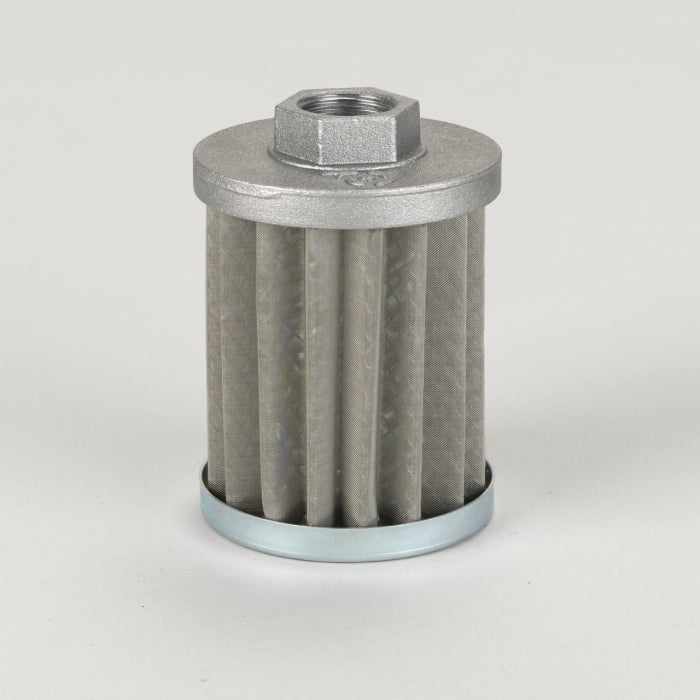

Donaldson P171863 Hydraulic Filter, Strainer | Replaces the Ikron HF41010060ASMI060GCA01

Brand: Donaldson
Description

Genuine Donaldson P171863 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.

Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.

Price Match
$ 230.00
0.1 kg
0.0004 m³
1300 pcs
Italy
8421.29.80.90
0.09 kg
0.0002 m³
1300 pcs
Italy
8421.99.90
0.12 kg
0.0005 m³
1300 pcs
France
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171863 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.

Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 160µ
Outer Diameter 54.0 mm
Length 82.0 mm
Thread3/8" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HF41010060ASMI060GCA01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Suction Strainer
Outer Diameter 54.0 mm
Inner Diameter
Length 82.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 3/8" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
