MicroFit MFHLP30702 Replaces the Ikron HHC30159

MICROFIT MFHLP30702
MICROFIT MFHLP30702
Representative product image Product image feedback

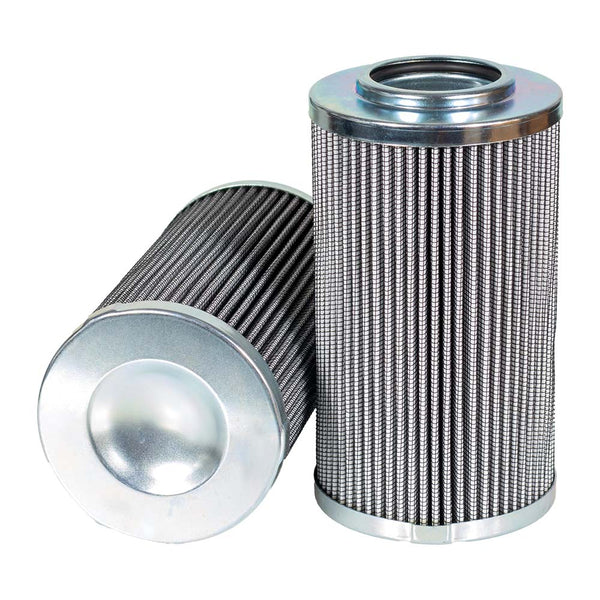

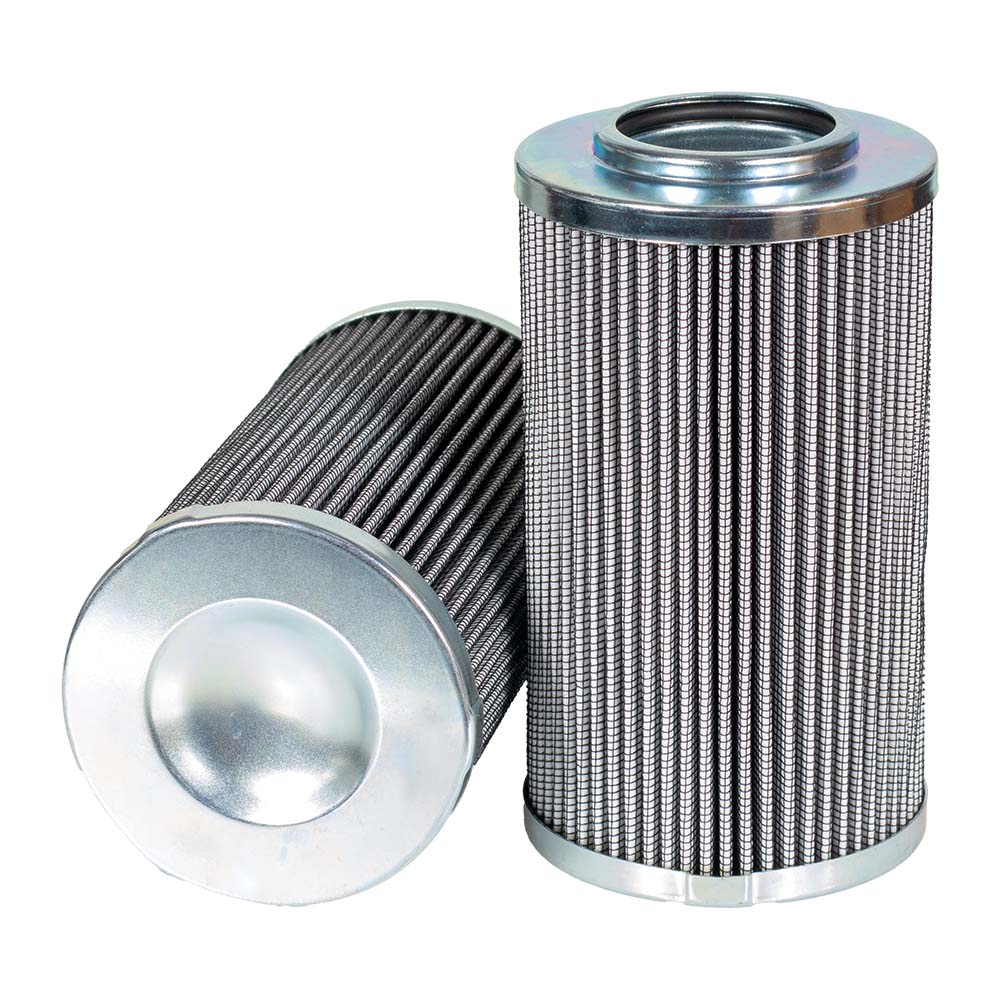

MicroFit® UltraGen III MFHLP30702 Pressure Filter | Replaces the Ikron HHC30159

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30702 is the MICROFIT® approved replacement to the Ikron HHC30159. Engineered and manufactured in Great Britain the MFHLP30702

Price Match
$ 3,950.00
3.31 kg
0.0032 m³
United Kingdom
8421.99.90
1.5 kg
0.0032 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30702 is the MICROFIT® approved replacement to the Ikron HHC30159. Engineered and manufactured in Great Britain the MFHLP30702

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 520.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HHC30159

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 520.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
