MicroFit MFHLP31854 Replaces the Hy-Pro HP28NL1225MB

MICROFIT MFHLP31854
MICROFIT MFHLP31854

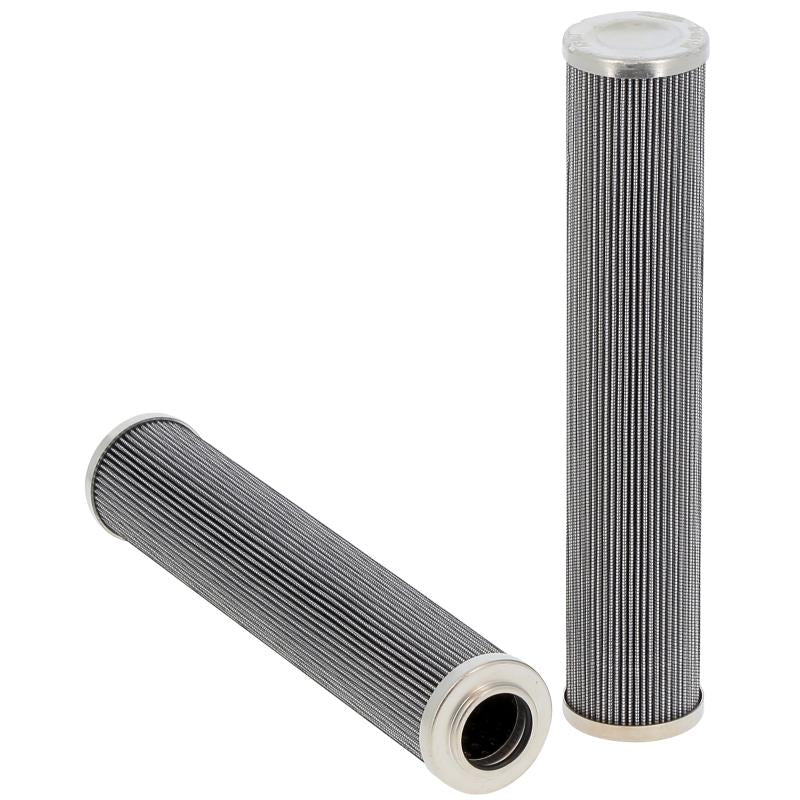

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31854 Pressure Filter | Replaces the Hy-Pro HP28NL1225MB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31854 is the MICROFIT® approved replacement to the Hy-Pro HP28NL1225MB. Engineered and manufactured in Great Britain the MFHLP31854

Price Match
$ 1,783.00
1.52 kg
0.0011 m³
United Kingdom
8421.99.90
0.7 kg
0.0011 m³
Italy
8421.99.90
0.68 kg
0.0025 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31854 is the MICROFIT® approved replacement to the Hy-Pro HP28NL1225MB. Engineered and manufactured in Great Britain the MFHLP31854

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 310.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP28NL1225MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 310.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
