MicroFit MFHLP33377 Replaces the Hy-Pro HP67NL1510WB

MICROFIT MFHLP33377
MICROFIT MFHLP33377
Representative product image Product image feedback

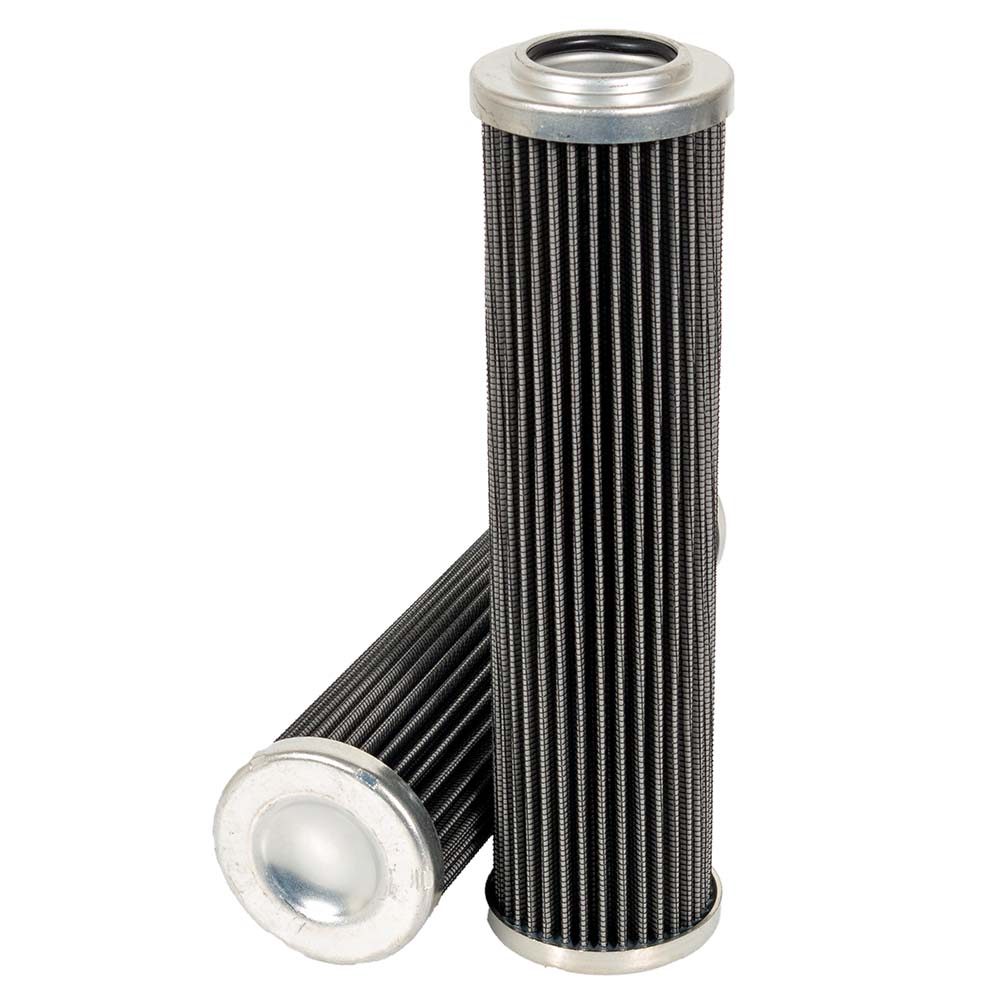

MicroFit® UltraGen III MFHLP33377 Pressure Filter | Replaces the Hy-Pro HP67NL1510WB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP33377 is the MICROFIT® approved replacement to the Hy-Pro HP67NL1510WB. Engineered and manufactured in Great Britain the MFHLP33377

Price Match
$ 8,898.00
3.89 kg
United Kingdom
8421.99.90
1.77 kg
0.0025 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP33377 is the MICROFIT® approved replacement to the Hy-Pro HP67NL1510WB. Engineered and manufactured in Great Britain the MFHLP33377

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 110µ
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 397.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP67NL1510WB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ
Efficiency 2
Style Pressure Filter
Outer Diameter 80.0 mm
Inner Diameter 42.2 mm
Length 397.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
