MicroFit MFHR50079 Replaces the Hy-Pro HPMF4L8-25MB

MICROFIT MFHR50079
MICROFIT MFHR50079
Representative product image Product image feedback

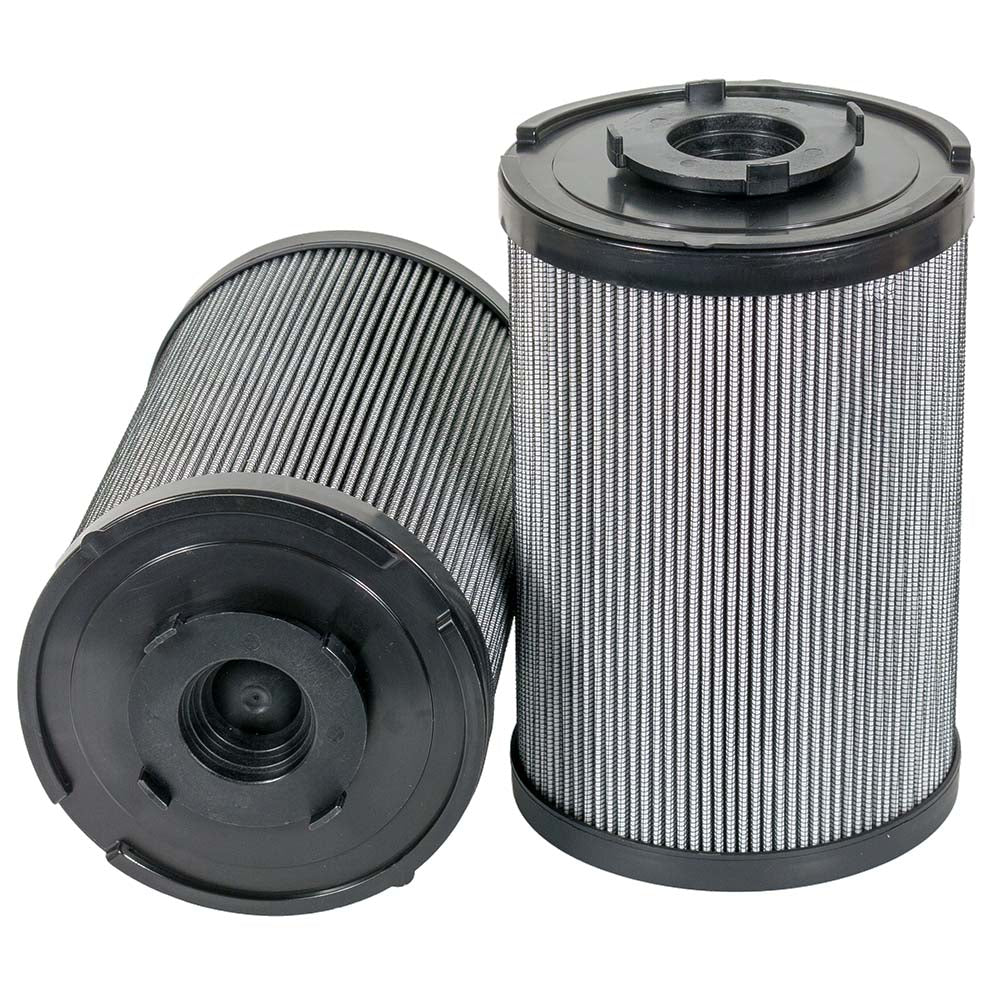

MicroFit® UltraGen III MFHR50079 Return Filter | Replaces the Hy-Pro HPMF4L8-25MB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50079 is the MICROFIT® approved replacement to the Hy-Pro HPMF4L8-25MB. Engineered and manufactured in Great Britain the MFHR50079

Price Match
$ 1,453.00
2.87 kg
0.0034 m³
United Kingdom
8421.99.90
1.3 kg
0.0035 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50079 is the MICROFIT® approved replacement to the Hy-Pro HPMF4L8-25MB. Engineered and manufactured in Great Britain the MFHR50079

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 200.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HPMF4L8-25MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 130.0 mm
Inner Diameter 64.5 mm
Length 200.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
