Donaldson P762756 Replaces the SF Filter HY10168/1

Donaldson P762756
Donaldson P762756
Watch video
▶
Representative product image Product image feedback

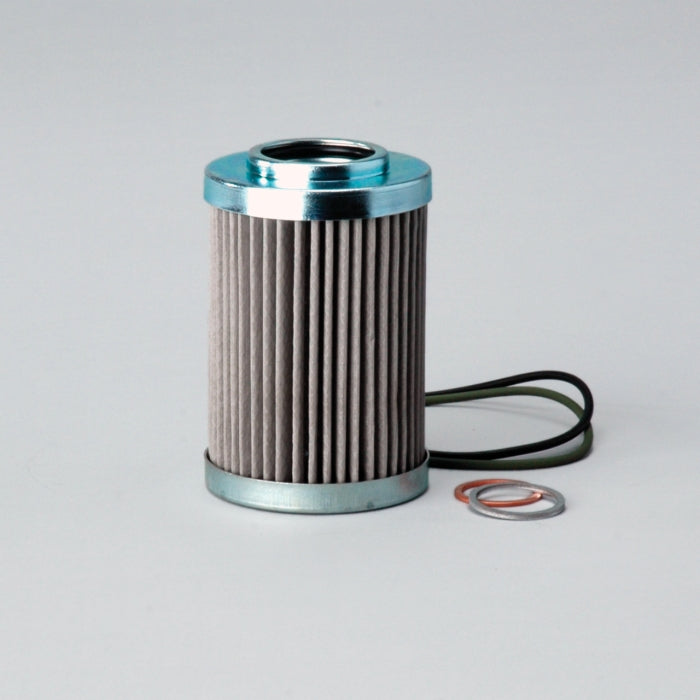

Donaldson P762756 Hydraulic Filter, Cartridge | Replaces the SF Filter HY10168/1

Brand: Donaldson
Description

Genuine Donaldson P762756 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$ 521.00
0.36 kg
0.001 m³
490 pcs
Poland
8421.29.80.90
0.24 kg
0.0005 m³
490 pcs
Italy
8421.99.90
0.32 kg
0.0009 m³
490 pcs
France
8421.99.90
0.24 kg
490 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P762756 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleSpecial Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 69.0 mm
Inner Diameter 34.5 mm
Length 103.0 mm
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY10168/1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Special Filter
Outer Diameter 69.0 mm
Inner Diameter 34.5 mm
Length 103.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
