Summary

MicroFit MFHLP32476 Replaces the SF Filter HY11495

MICROFIT MFHLP32476
MICROFIT MFHLP32476

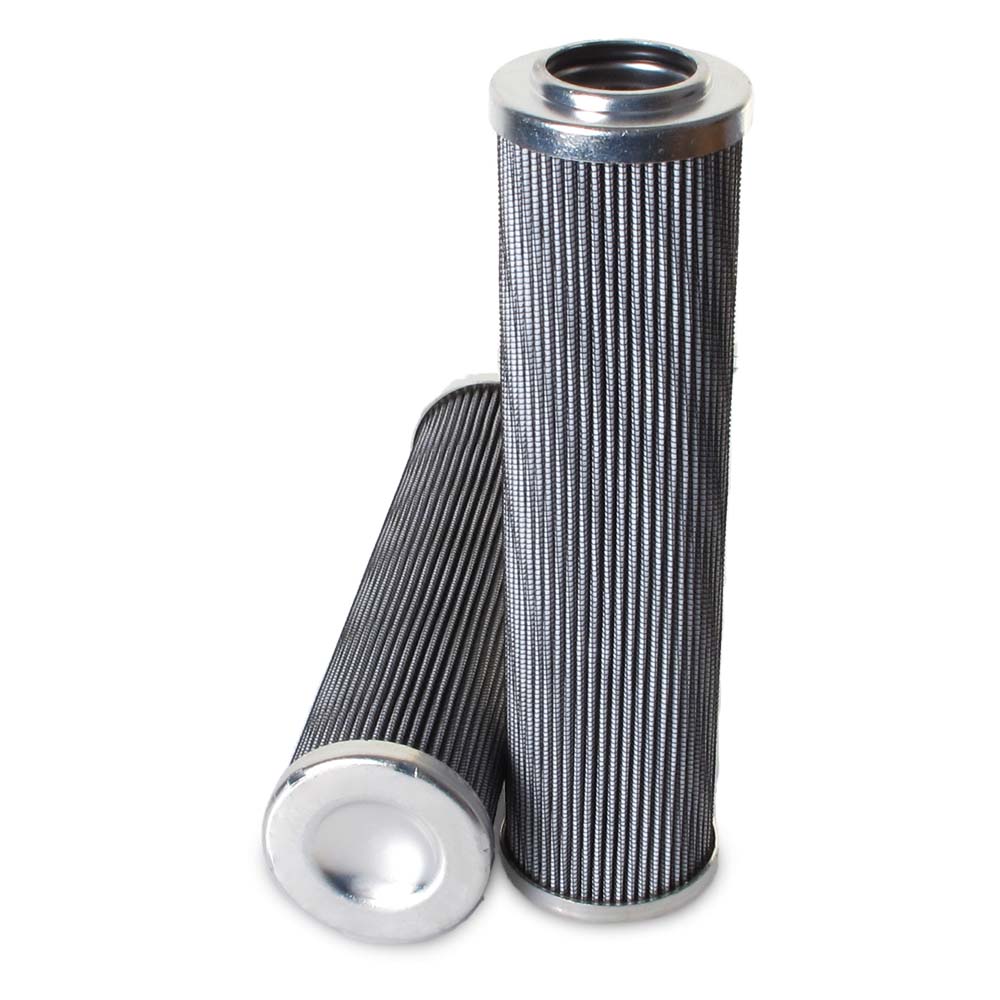

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32476 Pressure Filter | Replaces the SF Filter HY11495

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32476 is the MICROFIT® approved replacement to the SF Filter HY11495. Engineered and manufactured in Great Britain the MFHLP32476

Price Match
$ 1,527.00
1.24 kg
0.0008 m³
United Kingdom
8421.99.90
0.57 kg
0.0008 m³
Italy
8421.99.90
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32476 is the MICROFIT® approved replacement to the SF Filter HY11495. Engineered and manufactured in Great Britain the MFHLP32476

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 225.0 mm
Δ Collapse Pressure 30 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY11495

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 225.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 30 BAR
Seal Nitrile
Temperature Range -30 - +100°C
