MicroFit MFHLP30143 Replaces the SF Filter HY12199

SF Filter HY12199
SF Filter HY12199
Representative product image Product image feedback

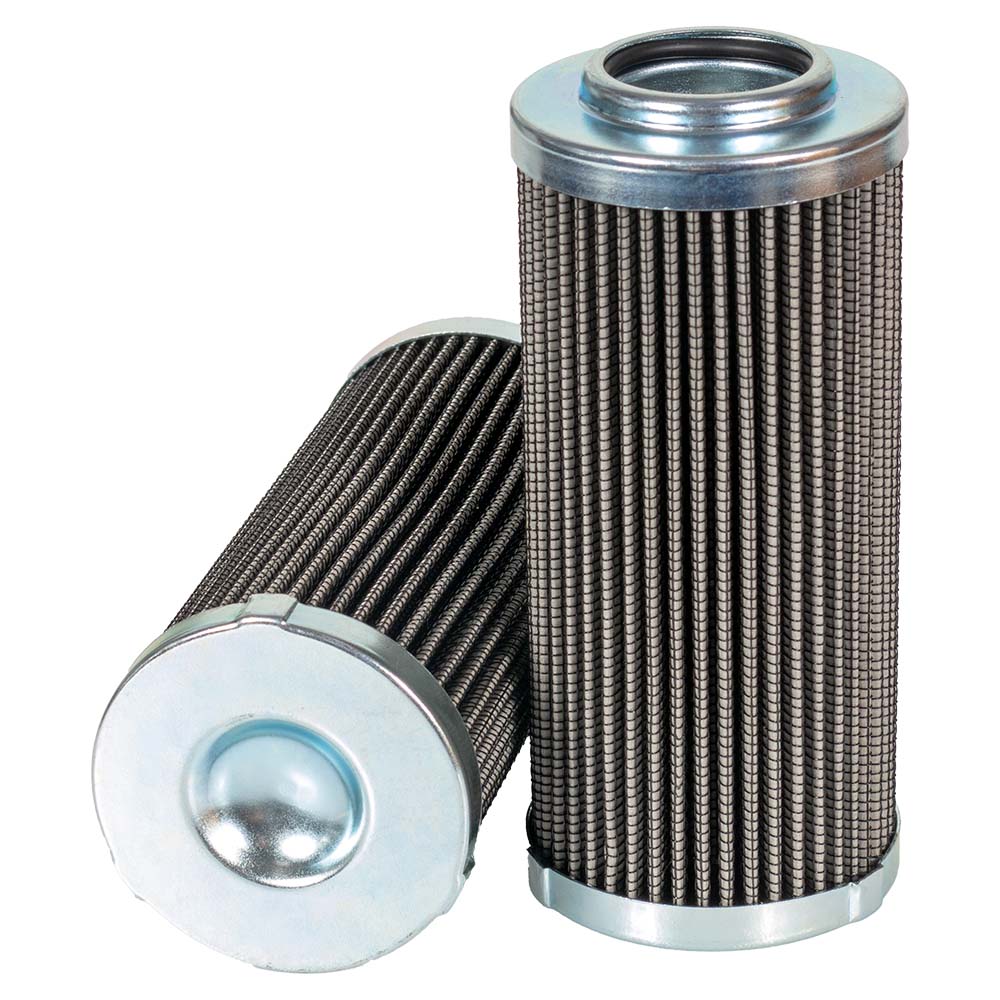

MicroFit® UltraGen III MFHLP30143 Pressure Filter | Replaces the SF Filter HY12199

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30143 is the MICROFIT® approved replacement to the SF Filter HY12199. Engineered and manufactured in Great Britain the MFHLP30143 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$ 873.00
0.36 kg
0.0002 m³
1300 pcs
United Kingdom
8421.99.90
0.14 kg
0.0004 m³
1300 pcs
Italy
8421.29.80.90
0.18 kg
0.0005 m³
1300 pcs
France
8421.99.90
1300 pcs
Germany
8421.99.90
0.17 kg
0.0002 m³
1300 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30143 is the MICROFIT® approved replacement to the SF Filter HY12199. Engineered and manufactured in Great Britain the MFHLP30143 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 86.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY12199

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 86.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
