Donaldson P171523 Replaces the SF Filter HY18216

HY18216
HY18216
Watch video
▶
Representative product image Product image feedback

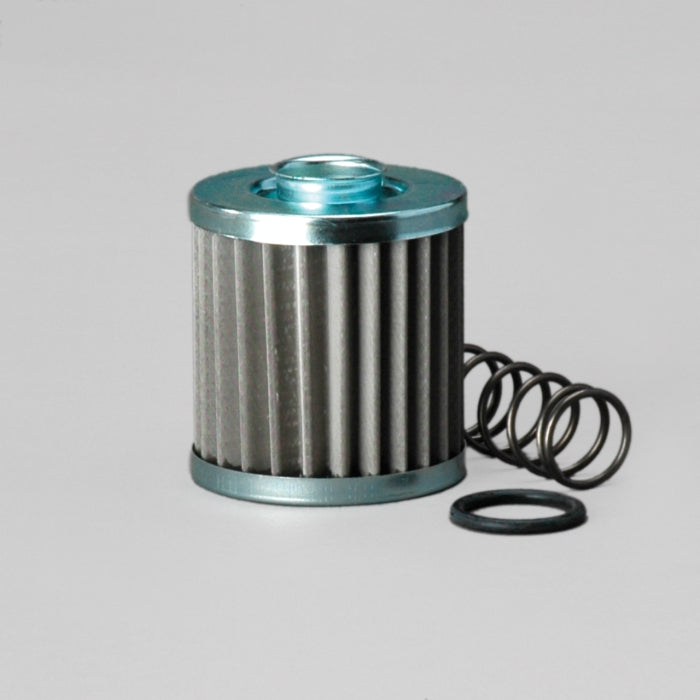

Donaldson P171523 Hydraulic Filter, Cartridge | Replaces the SF Filter HY18216

Brand: Donaldson
Description

Genuine Donaldson P171523 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$ 356.00
0.2 kg
0.0007 m³
1008 pcs
Italy
8421.29.80.90
0.21 kg
0.0007 m³
1008 pcs
France
8421.99.90
0.18 kg
0.0004 m³
1008 pcs
Italy
8421.99.90
0.18 kg
1008 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171523 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 82.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY18216

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 82.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
