MicroFit MFHLP30979 Replaces the Main Filter MF0059406

MF0059406
MF0059406
Representative product image Product image feedback

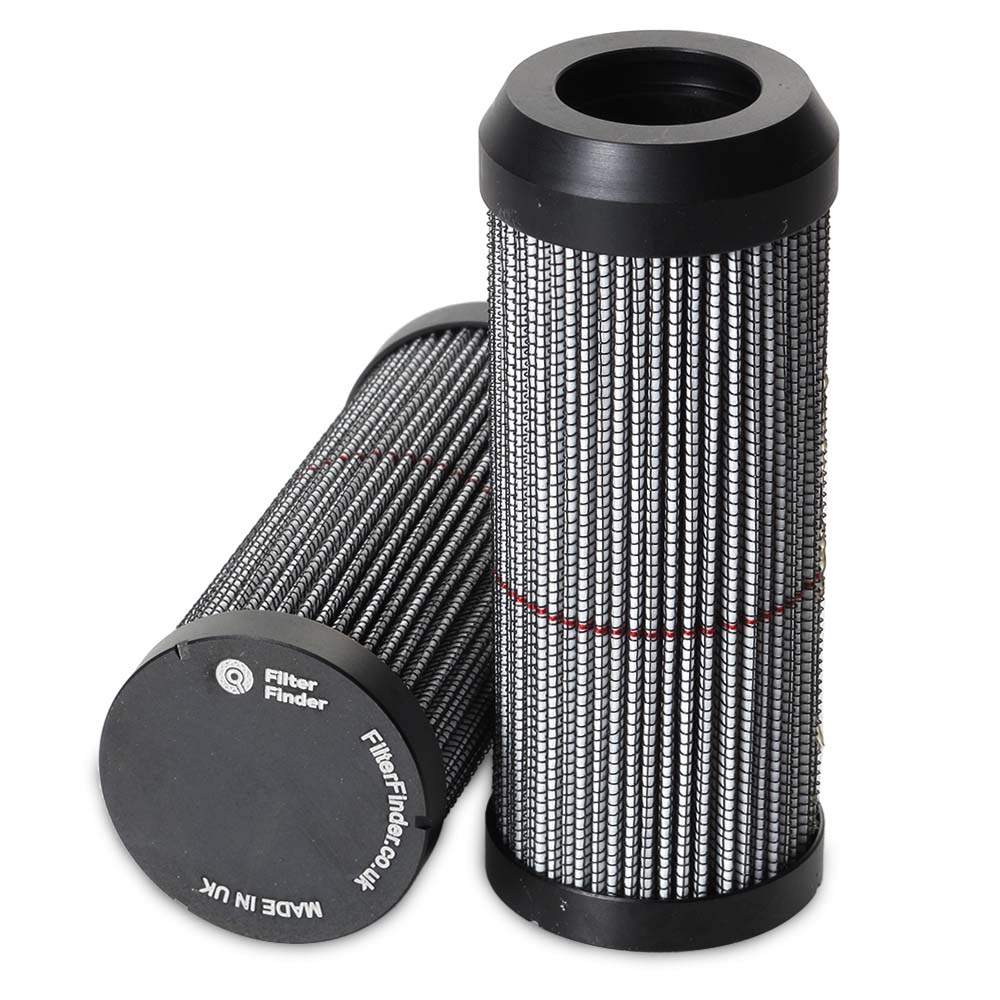

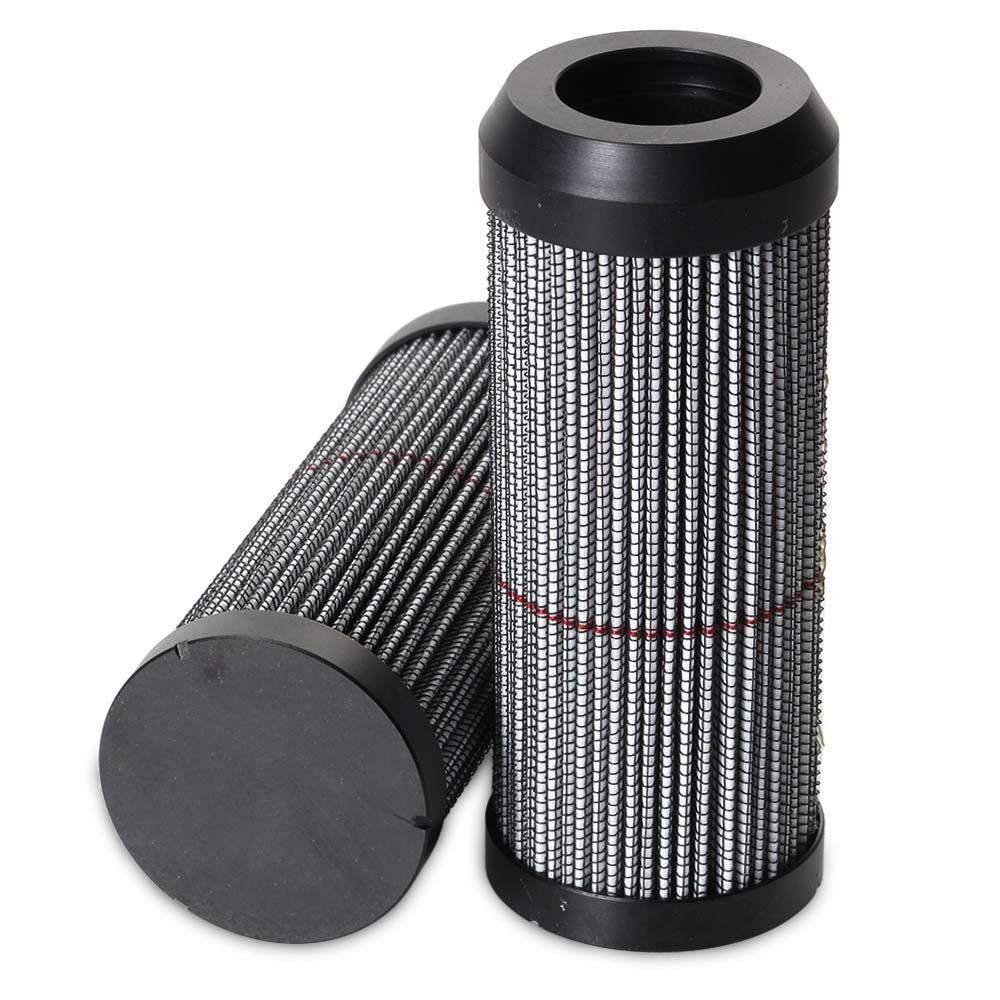

MicroFit® UltraGen III MFHLP30979 Pressure Filter | Replaces the Main Filter MF0059406

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30979 is the MICROFIT® approved replacement to the Main Filter MF0059406. Engineered and manufactured in Great Britain the MFHLP30979

Price Match
$ 1,762.00
1.95 kg
0.0013 m³
United Kingdom
8421.99.90
0.41 kg
0.0013 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30979 is the MICROFIT® approved replacement to the Main Filter MF0059406. Engineered and manufactured in Great Britain the MFHLP30979

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Δ Collapse Pressure 40 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Main Filter MF0059406

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 40 BAR
Seal Viton
Temperature Range -25 - +120°C
