Stauff NL-100-E-06-B/4 Replaces the Stauff NL100E06B

Stauff NL100E06B
Stauff NL100E06B
Representative product image Product image feedback

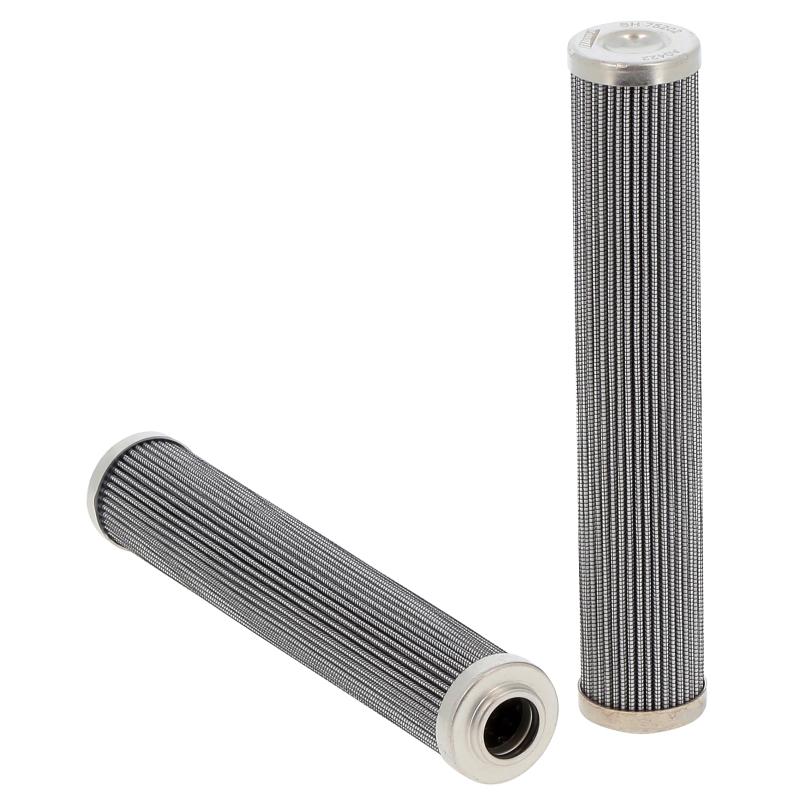

Stauff NL-100-E-06-B/4 DIN Pressure Filter | Replaces the Stauff NL100E06B

Brand: Stauff
Description

The FF203704B is our FilterFinder Approved replacement to the Stauff NL100E06B. Our element is designed to meet or exceed the quality and performance of the original Stauff filter, ensuring superior filtration performance and long-lasting durability.



Engineered with our glass fiber media and a durable design, the FF203704B provides reliable and consistent performance over its lifespan, even in harsh operating environments. With FilterFinder, you can trust that you are getting a reliable and high-quality replacement filter that will keep your system running smoothly.

Price Match
$ 1,558.00
Germany
8421.99.90
0.31 kg
0.0005 m³
Italy
8421.99.90
0.34 kg
0.0011 m³
France
8421.99.90
0.34 kg
0.0018 m³
Germany
8421.29.80
0.31 kg
United Kingdom
8421.99.90
Shipping Terms

Description

The FF203704B is our FilterFinder Approved replacement to the Stauff NL100E06B. Our element is designed to meet or exceed the quality and performance of the original Stauff filter, ensuring superior filtration performance and long-lasting durability.

Engineered with our glass fiber media and a durable design, the FF203704B provides reliable and consistent performance over its lifespan, even in harsh operating environments. With FilterFinder, you can trust that you are getting a reliable and high-quality replacement filter that will keep your system running smoothly.

Specification

StyleDIN Pressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 44.5 mm
Inner Diameter 22.3 mm
Length 248.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff NL-100-E-06-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style DIN Pressure Filter
Outer Diameter 44.5 mm
Inner Diameter 22.3 mm
Length 248.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
