Donaldson P571363 Replaces the Mahle Pi13040RNMIC10

Pi13040RNMIC10
Pi13040RNMIC10
Watch video
▶

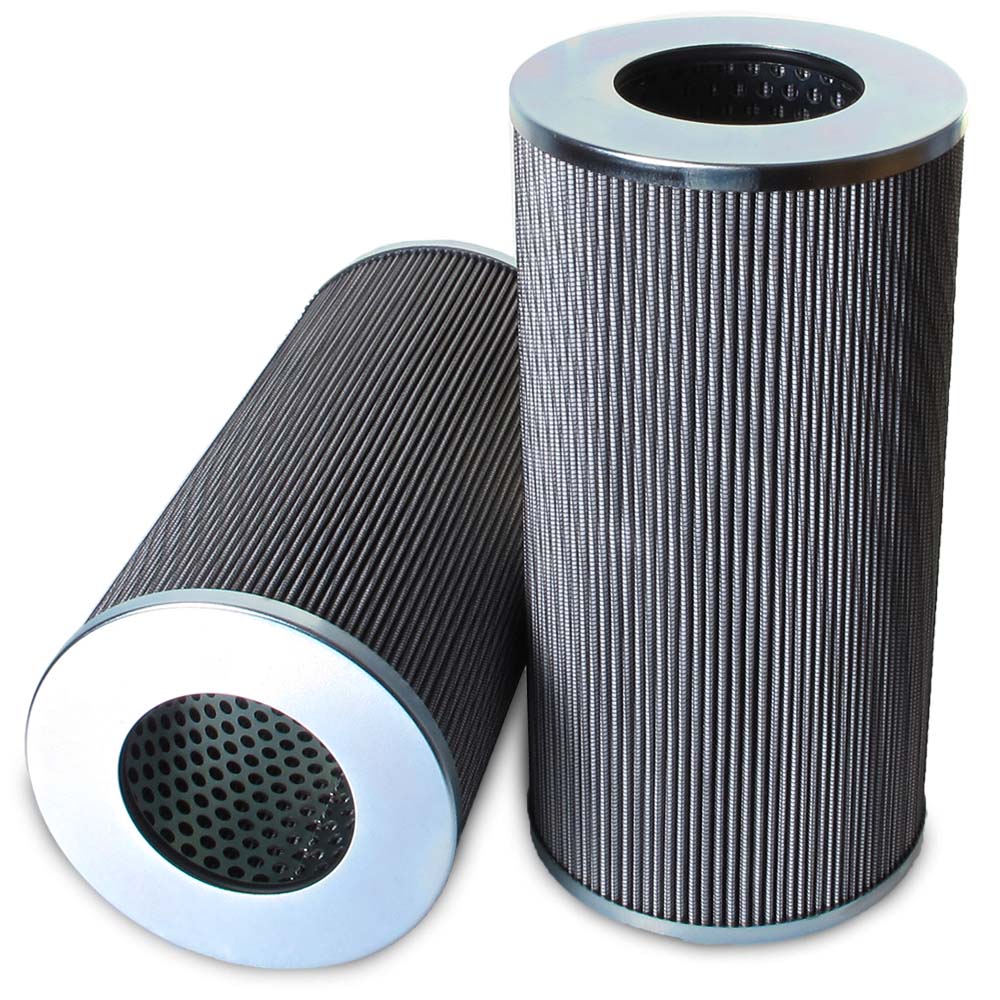

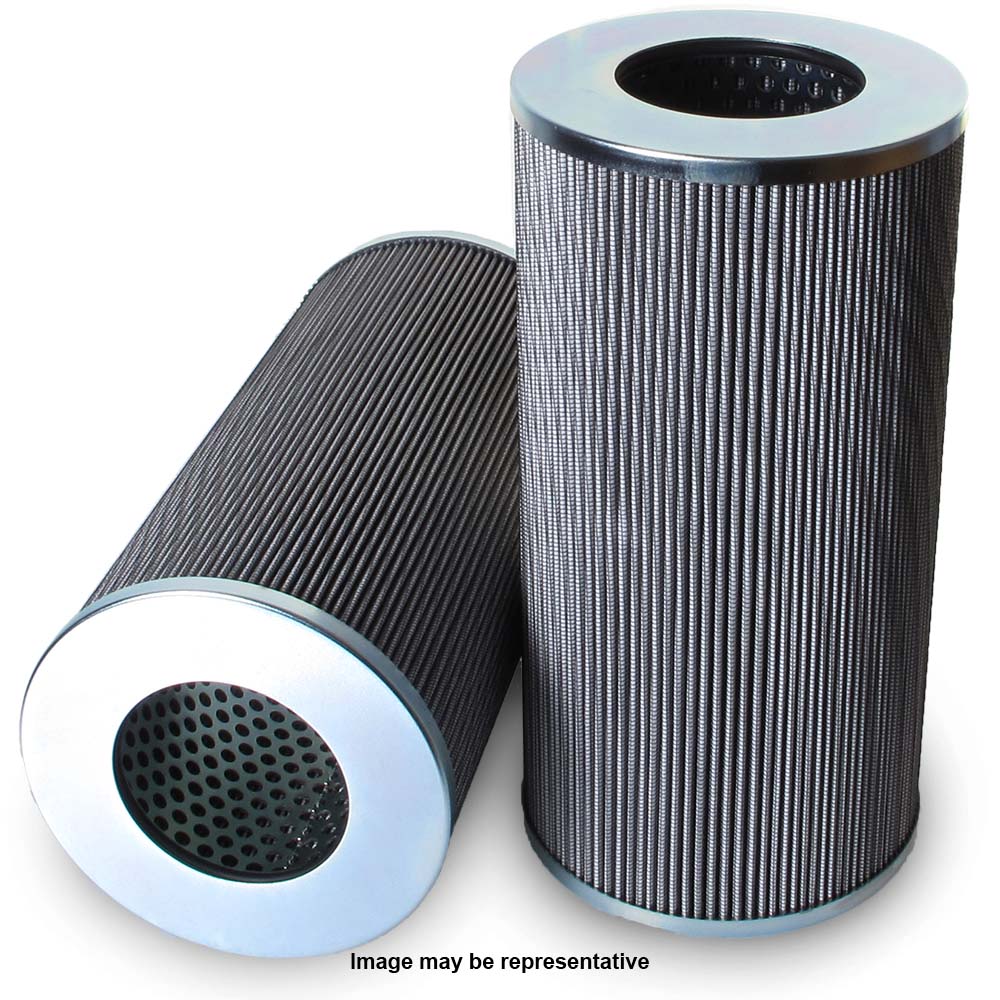

Representative product image Product image feedback

Donaldson P571363 Hydraulic Filter, Cartridge Dt | Replaces the Mahle Pi13040RNMIC10

Brand: Donaldson
Description

Genuine Donaldson P571363 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Price Match
$ 2,804.00
1.38 kg
0.0069 m³
168 pcs
United States
8421.29.80.90
1.43 kg
0.0042 m³
168 pcs
Italy
8421.99.90
1.36 kg
0.0054 m³
168 pcs
France
8421.99.90
1.28 kg
0.0081 m³
168 pcs
Germany
8421.23.00
Shipping Terms

Description

Genuine Donaldson P571363 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Specification

StyleDIN Return Filter
MediaCellulose
Efficiency 110µ @ β2
Outer Diameter 140.0 mm
Inner Diameter 70.5 mm
Length 250.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle Pi13040RNMIC10

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style DIN Return Filter
Outer Diameter 140.0 mm
Inner Diameter 70.5 mm
Length 250.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
