Stauff RE-300-A-20-B/2 Replacement Return Filter

Stauff RE-300-A-20-B/2
Stauff RE-300-A-20-B/2

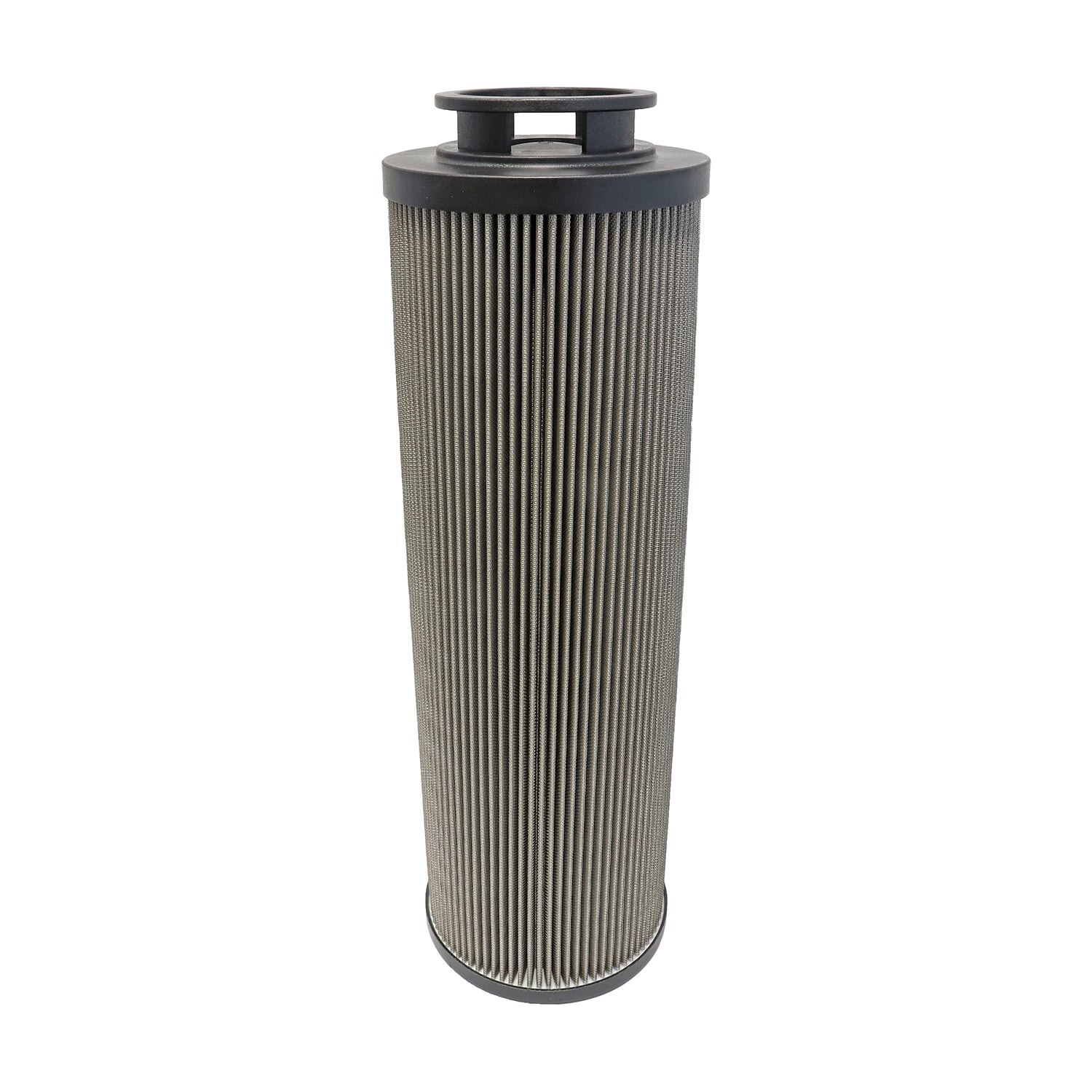

Representative product image Product image feedback

Stauff RE-300-A-20-B/2 Return Filter

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Stainless Fibre Outer Diameter (mm): 124,5 Inner Diameter (mm): 96,1 Length (mm): 483 Sealing: NBR, β ratio >2

Price Match
$ 30,278.00
Germany
8421.99.90
3.68 kg
0.0133 m³
France
8421.99.90
3.64 kg
0.0074 m³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Stainless Fibre Outer Diameter (mm): 124,5 Inner Diameter (mm): 96,1 Length (mm): 483 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
MediaStainless Steel Fiber
Efficiency 125µ @ β200
Efficiency 227µ @ β1000
Outer Diameter 124.5 mm
Inner Diameter 96.5 mm
Length 483.0 mm
Bypass Pressure 3.0 BAR bar
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff RE-300-A-20-B/2

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β200
Efficiency 2 27µ @ β1000
Style Return Filter
Outer Diameter 124.5 mm
Inner Diameter 96.5 mm
Length 483.0 mm
Media Type Stainless Steel Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

3.0 BAR
Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
