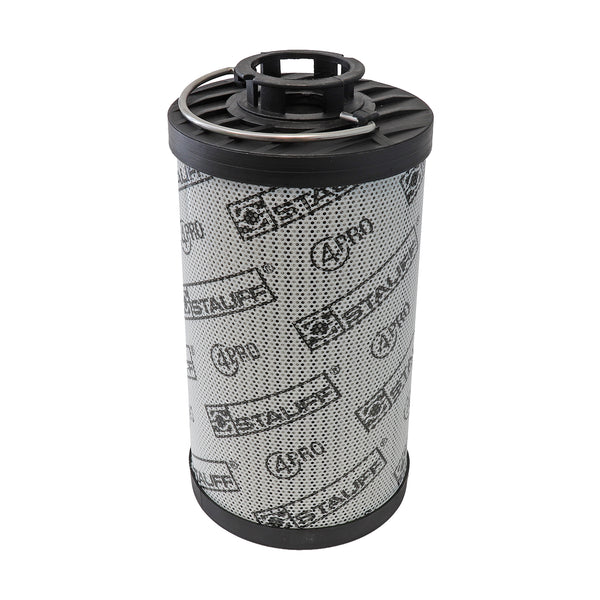

Stauff RE-046-G-10-B/4 Replaces the Stauff RE046G10B4
Stauff RE-046-G-10-B/4 Return Filter
RE-046-G-10-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 229 Sealing: NBR, β ratio >200
Regular price
$ 1,462.00
Unit price
per
Germany
8421.99.90
0.35 kg
0.0014 m³
France
8421.99.90
0.19 kg
0.0008 m³
Italy
8421.99.90
0.88 kg
0.0008 m³
United Kingdom
8421.99.90
Germany
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 229 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 60.0 mm |
| Inner Diameter | 34.2 mm |
| Length | 228.5 mm |
| Bypass Pressure | 3.0 BAR bar |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
