MicroFit MFHR56989 Replaces the Sofima RE55FT1

MICROFIT MFHR56989
MICROFIT MFHR56989
Representative product image Product image feedback

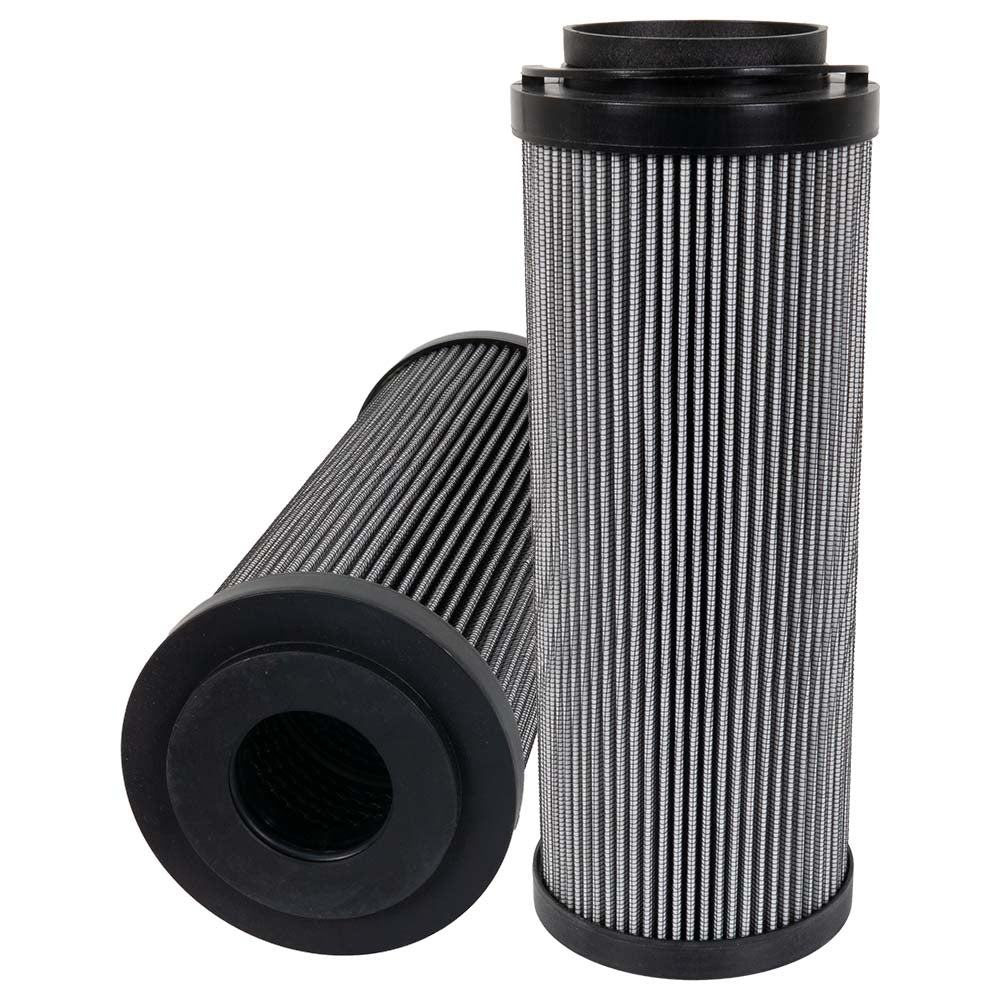

MicroFit® UltraGen III MFHR56989 Return Filter | Replaces the Sofima RE55FT1

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56989 is the MICROFIT® approved replacement to the Sofima RE55FT1. Engineered and manufactured in Great Britain the MFHR56989

Price Match
$ 1,475.00
2.17 kg
0.0025 m³
United Kingdom
8421.99.90
0.99 kg
0.0026 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56989 is the MICROFIT® approved replacement to the Sofima RE55FT1. Engineered and manufactured in Great Britain the MFHR56989

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 256.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Sofima Brand Logo

Same Fit-Form & Function

As the Genuine Sofima RE55FT1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 256.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
