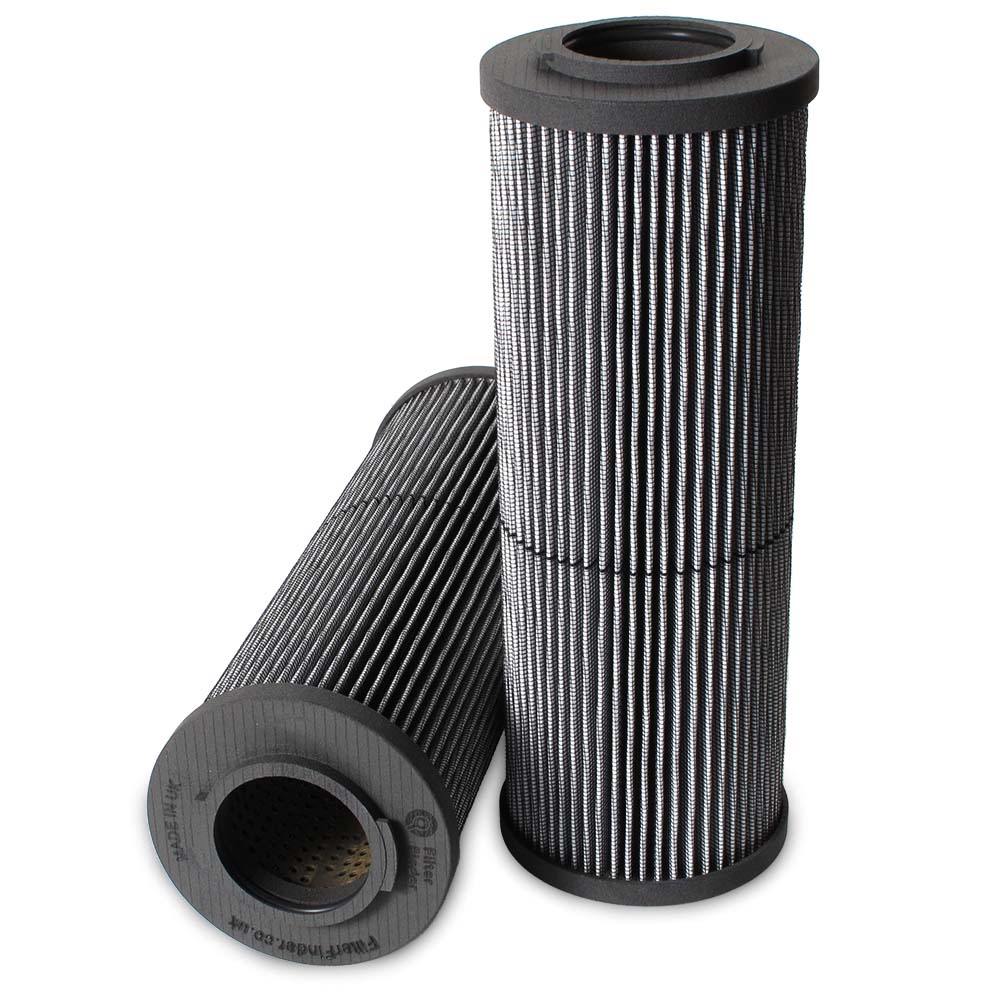

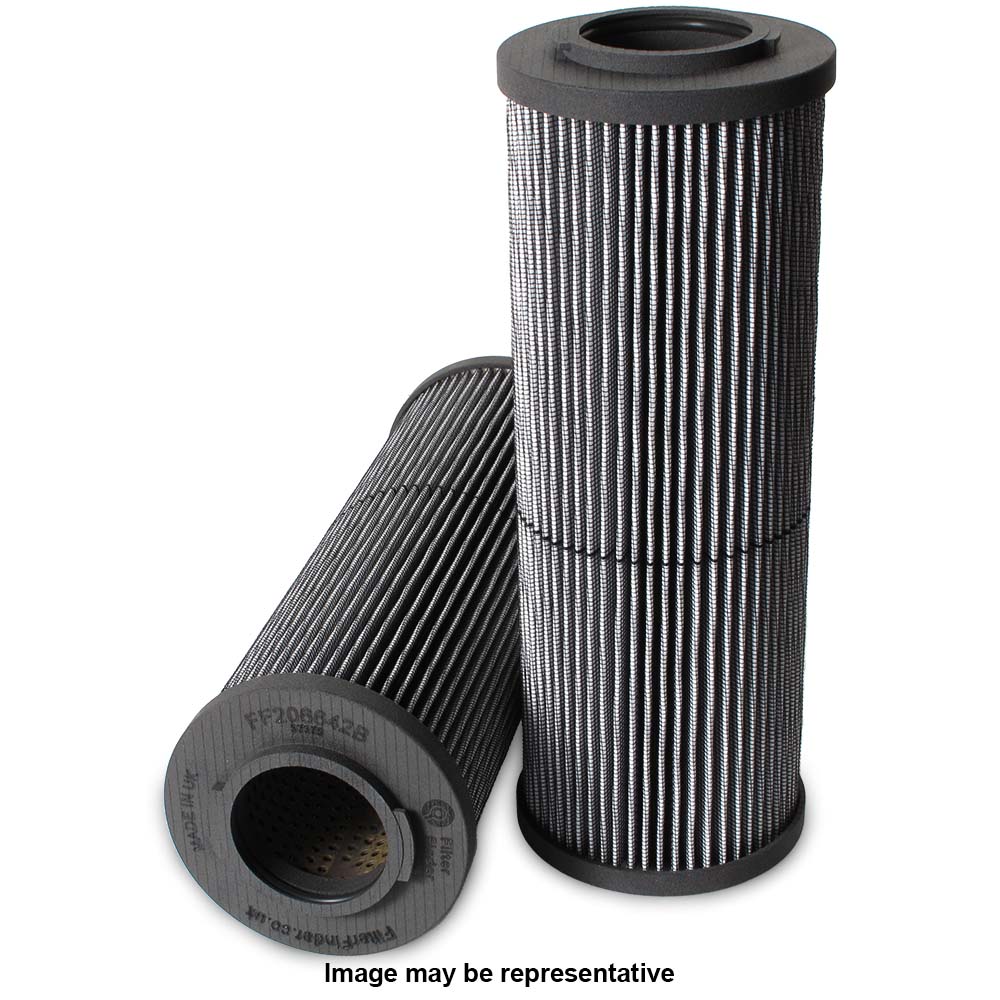

Stauff RN-100-E-10-B/4 Replacement Return Filter
Stauff RN-100-E-10-B/4 Return Filter
RN-100-E-10-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 83 Inner Diameter (mm): 45 Length (mm): 309 Sealing: NBR, β ratio >200
Regular price
$ 6,354.00
Unit price
per
Germany
8421.99.90
1.04 kg
0.0029 m³
France
8421.99.90
1.11 kg
0.0021 m³
Italy
8421.99.90
1.11 kg
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 83 Inner Diameter (mm): 45 Length (mm): 309 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 83.0 mm |
| Inner Diameter | 45.0 mm |
| Length | 304.0 mm |
| Bypass Pressure | 2.0 BAR bar |
| Δ Collapse Pressure | 16 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
