Stauff SE-030-H-10-B/4 Replaces the Stauff SE-030-C-10-B/2
Stauff SE-030-H-10-B/4 Pressure Filter | Replaces the Stauff SE-030-C-10-B/2

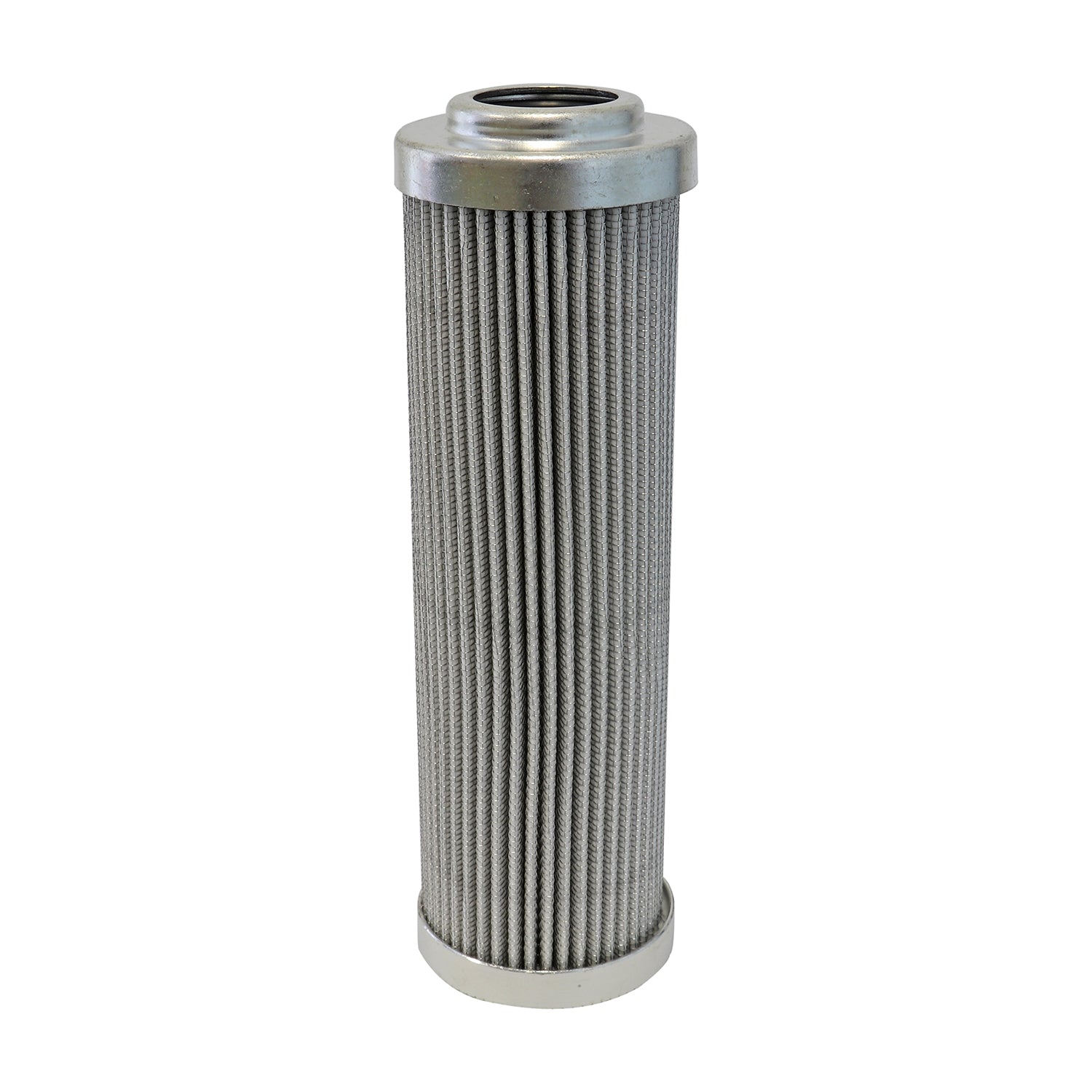

SE-030-H-10-B/4
Stauff

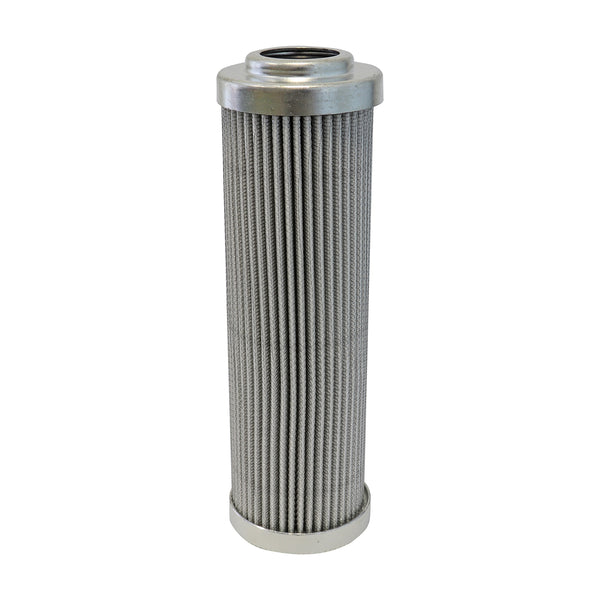

Stauff SE-030-C-10-B/2
Stauff
Stauff SE-030-C-10-B/2
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Regular price
$ 1,902.00
Unit price
per
Germany
8421.99.90
0.36 kg
0.0005 m³
France
8421.99.90
0.4 kg
0.0003 m³
United Kingdom
8421.99.90
0.4 kg
0.0003 m³
Italy
8421.99.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 47.0 mm |
| Inner Diameter | 22.1 mm |
| Length | 153.0 mm |
| Δ Collapse Pressure | 210 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Stauff Product
Genuine Stauff SE-030-H-10-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
