Stauff SE-045-A-10-B/2 Replacement Pressure Filter

Stauff SE-045-A-10-B/2
Stauff SE-045-A-10-B/2

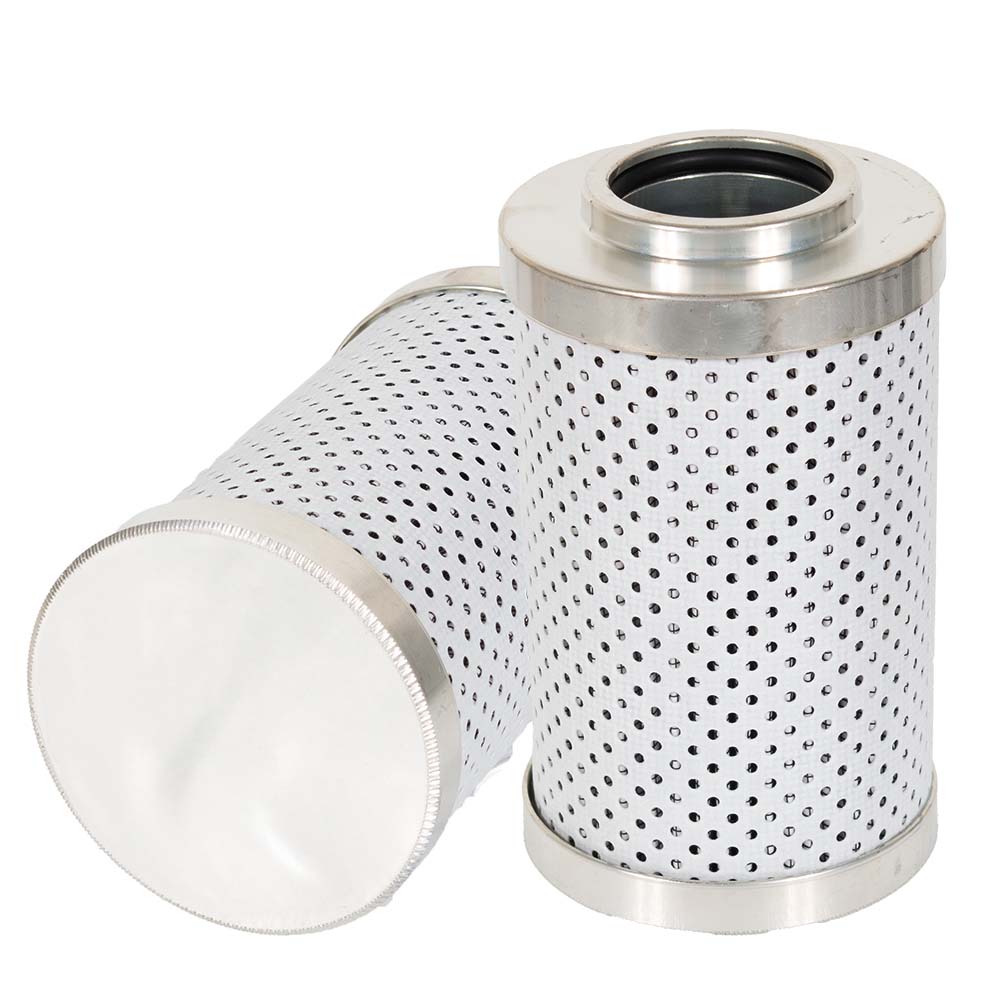

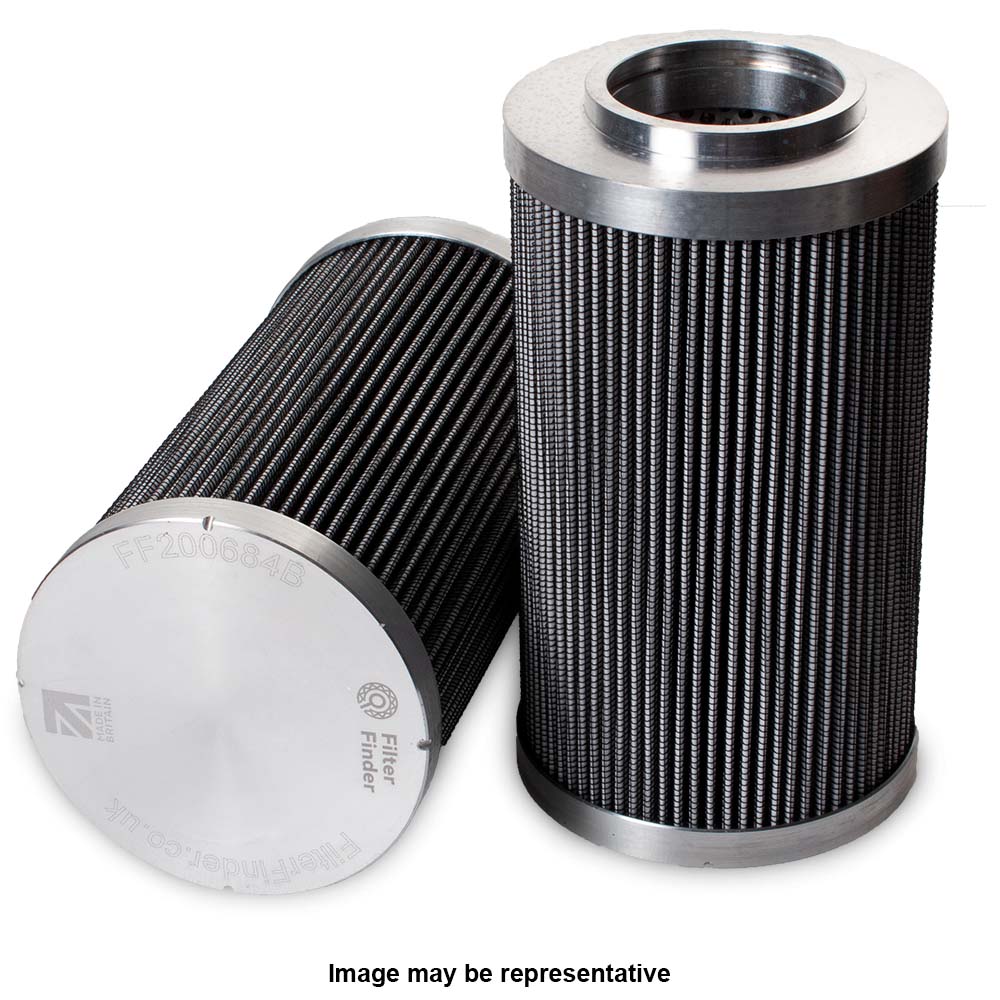

Representative product image Product image feedback

Stauff SE-045-A-10-B/2 Pressure Filter

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Stainless Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 130 Sealing: NBR, β ratio >2

Price Match
$ 4,948.00
Germany
8421.99.90
0.52 kg
0.0009 m³
France
8421.99.90
0.5 kg
0.0005 m³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Stainless Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 130 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
MediaStainless Steel Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 129.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SE-045-A-10-B/2

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 129.0 mm
Media Type Stainless Steel Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Nitrile
Temperature Range -30 - +100°C
