Summary

Stauff SFCT-5760-E Replacement Spin-On Filter

Stauff SFCT-5760-E
Stauff SFCT-5760-E
Representative product image Product image feedback

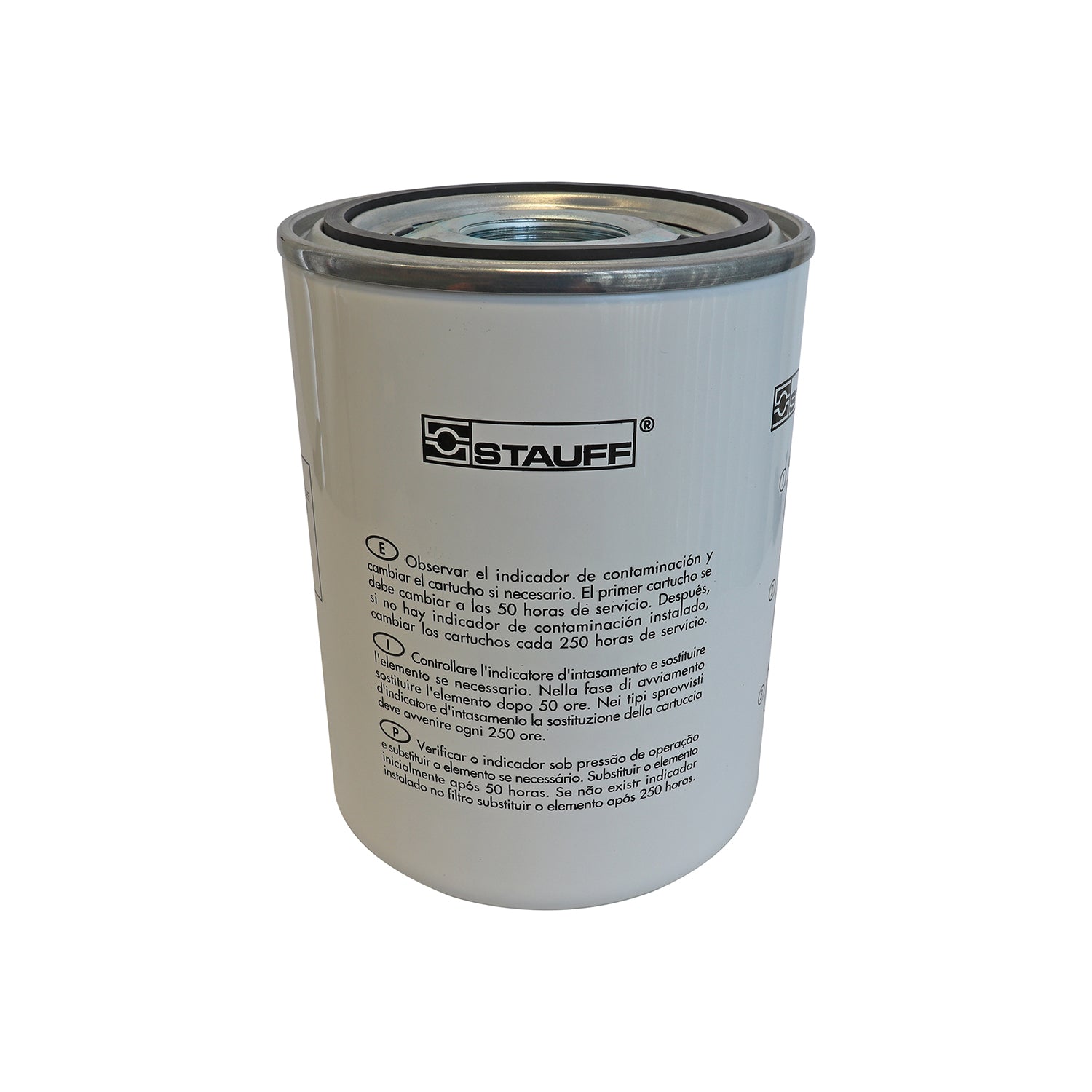

Stauff SFCT-5760-E Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 60 µm Material: Brass Mesh Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >2

Price Match
$ 1,922.00
Germany
8421.99.90
1.53 kg
0.003 m³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 60 µm Material: Brass Mesh Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >2

Specification

StyleSpin-On Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 128.0 mm
Length 182.0 mm
Thread1 1/4" BSP
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SFCT-5760-E

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Spin-On Filter
Outer Diameter 128.0 mm
Inner Diameter
Length 182.0 mm
Media Type Wire Mesh
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
