Stauff SFCT-5810-AE Replacement Spin-On Filter

Stauff SFCT-5810-AE
Stauff SFCT-5810-AE
Representative product image Product image feedback

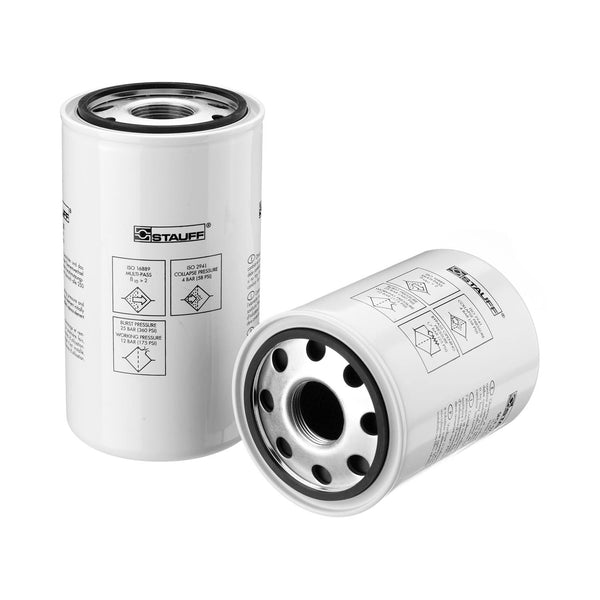

Stauff SFCT-5810-AE Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 132 Length (mm): 226 Sealing: NBR, β ratio >200

Price Match
$ 3,142.00
Germany
8421.99.90
1.79 kg
0.0037 m³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 132 Length (mm): 226 Sealing: NBR, β ratio >200

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 128.0 mm
Length 228.0 mm
Thread1 1/4" BSP
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SFCT-5810-AE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 128.0 mm
Inner Diameter
Length 228.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
