Stauff SP-010-E-20-B/4 Replaces the Stauff SP010E20B4

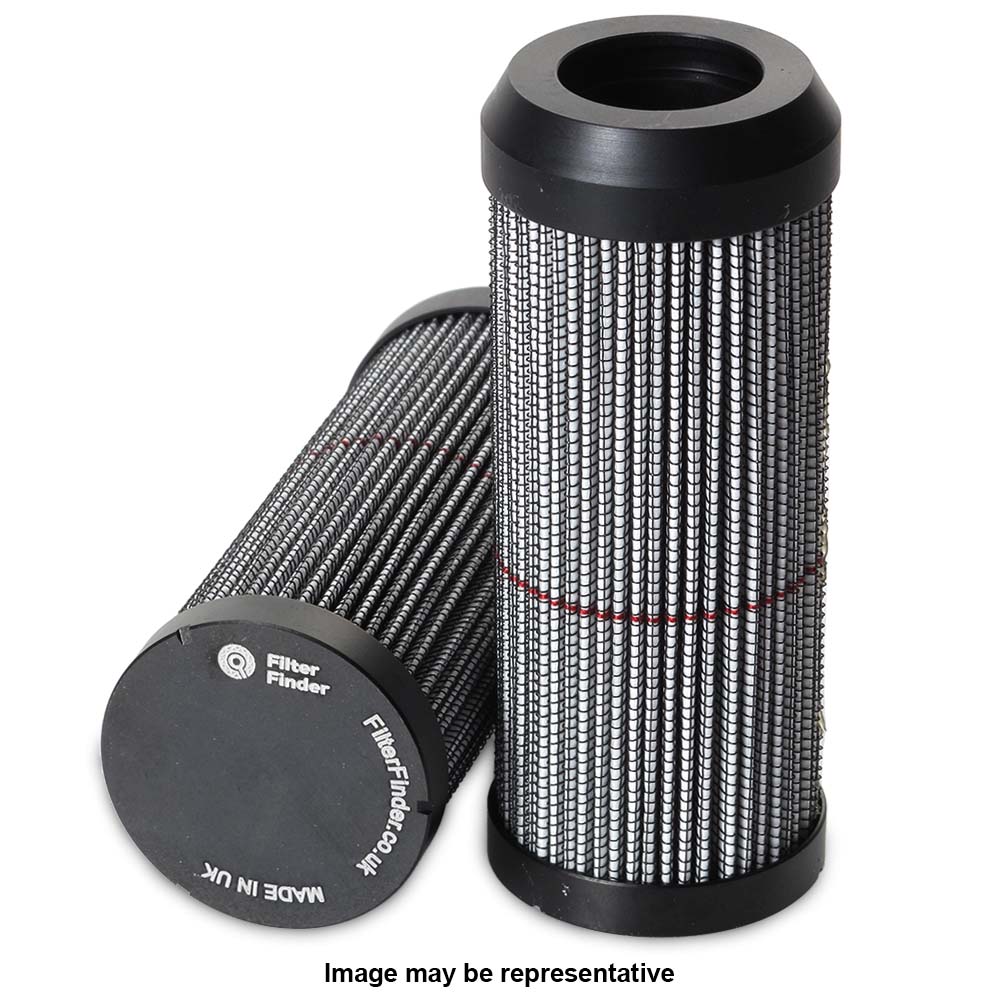

Stauff SP-010-E-20-B/4 Pressure Filter
SP-010-E-20-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 45,5 Inner Diameter (mm): 25,6 Length (mm): 112,5 Sealing: NBR, β ratio >200
Regular price
$ 1,069.00
Unit price
per
Germany
8421.99.90
0.35 kg
0.0002 m³
United Kingdom
8421.99.90
0.08 kg
0.0002 m³
Italy
8421.99.90
0.18 kg
0.0005 m³
France
8421.99.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 45,5 Inner Diameter (mm): 25,6 Length (mm): 112,5 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 45.0 mm |
| Inner Diameter | 25.5 mm |
| Length | 113.0 mm |
| Δ Collapse Pressure | 21 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
Stauff Product
Genuine Stauff SP-010-E-20-B/4
Inspected to ISO 9001:2015
