Summary

Stauff SUS-102-G32-225-125-P-O Replaces the Stauff SUS102G32225125PO

Stauff SUS102G32225125PO
Stauff SUS102G32225125PO
Representative product image Product image feedback

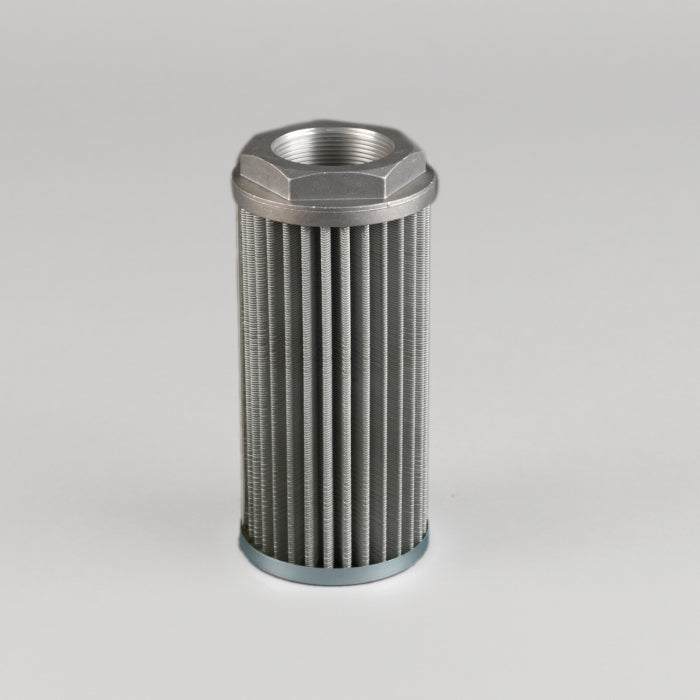

Stauff SUS-102-G32-225-125-P-O Suction Strainer

Brand: Stauff
Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 2"BSP

Price Match
$ 1,017.00
320 pcs
Germany
8421.99.90
0.5 kg
0.003 m³
320 pcs
France
8421.99.90
0.76 kg
0.0032 m³
320 pcs
Italy
8421.29.80.90
0.79 kg
0.0024 m³
320 pcs
Italy
8421.99.90
Shipping Terms

Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 2"BSP

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 102.0 mm
Length 228.0 mm
Thread2" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SUS-102-G32-225-125-P-O

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 102.0 mm
Inner Diameter
Length 228.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
